Cylindrical fuse HEV-J-Q 600
fast-actingClass aRpower

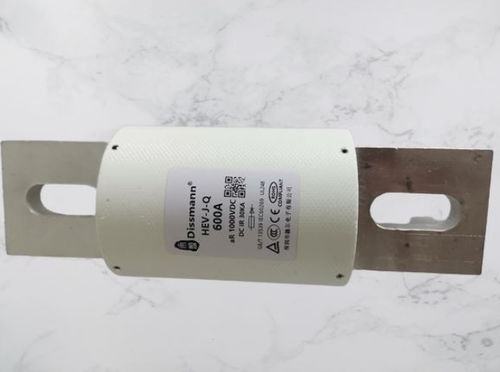

Cylindrical fuse - HEV-J-Q 600 - Shenzhen Deer Electronic Co.,Ltd. - fast-acting / Class aR / power
Cylindrical fuse - HEV-J-Q 600 - Shenzhen Deer Electronic Co.,Ltd. - fast-acting / Class aR / power
Cylindrical fuse - HEV-J-Q 600 - Shenzhen Deer Electronic Co.,Ltd. - fast-acting / Class aR / power - image - 2
Cylindrical fuse - HEV-J-Q 600 - Shenzhen Deer Electronic Co.,Ltd. - fast-acting / Class aR / power - image - 3
Add to favorites
Compare this product

Characteristics

Configuration
cylindrical
Type
fast-acting
Class
Class aR
Other characteristics
power
Applications
for automobiles
Amperage

Max.: 800 A

Min.: 5 A

VAC

1,000 V

VDC

1,000 V

Breaking capacity

30,000 A, 100,000 A

Description

Breaking Capacity:AC100KA/DC30KA at AC/DC1000V or lower Related Standard:UL248-20、ISO8820、JASO-D622、RoHS Breaking capacity::AC100KA、DC30KA at 1000VDC/AC Meet the requirement:UL248-20、ISO8820、JASO-D622、RoHS and TUV certified. Time constant:≤15ms Application of the 600 amp mio fuse This series products are Round Tube Bolted Connection Fuses, with small size, High Breaking capacity, Temperature shock resistance,Current surge, Mechanical vibration and shock, and Strong chemical load. Applicable for electric vehicle drive power system、Energy storage and power batteries、Energy storage capacitor、Frequency conversion controller、charger, wire and other automotive parts and equipment’s short circuit, overload and backup protection.
