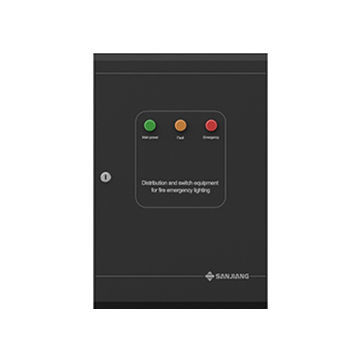

Cabinet power distribution unit SJ-FP series

Product name
Power distribution equipment for fire emergency lighting (models: SJ-FP-0.75KVA/F11E, SJ-FP-0.75KVA/F21E).

Product features
Designed in accordance with GB17945-2010 (Fire Emergency Lighting and Evacuate Indicating System) to provide centralized emergency power distribution and switching. Suited for centrally controlled fire emergency lighting and evacuate indicating systems. The unit integrates zonal distribution and internal driving control board(s); each driving control board provides two independent control loops. Two-core non-polar wiring enables direct connection to Sanjiang fire emergency indicator lights and emergency luminaires.

Product info

• The SJ-FP units are power distribution and switching devices for centralized emergency output per GB17945-2010, intended for buildings with central power supply and centralized control.
• Each unit contains one or more internal driving control boards; each board supplies two independent control loops.
• Connection uses two-core non-polar cables compatible with Sanjiang indicators and luminaires. See the specification sheet for maximum terminal counts per loop and per configuration.

Technical specifications

• Models: SJ-FP-0.75KVA/F11E and SJ-FP-0.75KVA/F21E.
• Standard: GB17945-2010 compliant.
• Application: Power distribution and switching for centralized emergency power output in fire emergency lighting and evacuate indicating systems.
• Control architecture: Internal driving control board(s) with two independent control loops per board.
• Wiring: Two-core non-polar wiring compatible with Sanjiang fire emergency indicators and emergency luminaires.
• Terminal capacity: Refer to the specification sheet for definitive terminal counts per loop/configuration (product pages list maximum terminals; values vary by configuration).
• Typical use: Zonal power distribution for centralized emergency power in buildings using centralized control.
• Documentation: User manual available for the SJ-FP-0.75KVA/F21E model.
