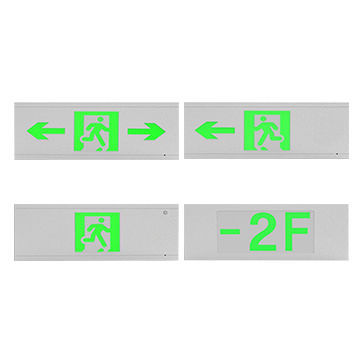

LED indicator light SJ-BLJC-Ⅱ2LRE3W／AS1E

wall-mountedheat-resistantcorrosion-resistant

Product overview
This central-controlled fire emergency indicating luminaire is designed for centralized battery supply and integration with fire emergency lighting and evacuation indication systems. It provides visible evacuation guidance for densely occupied public and commercial buildings under emergency conditions.

Key features

• Compatible with two-bus non-polar signal for combined control and power to reduce installation cost.
• Ultra-bright green LED light source for low consumption and long service life.
• Constant-current drive for stable luminous output.
• Resistant to high temperature and corrosion for broad environmental suitability.

Technical parameters

• Operating temperature: -10℃ to +55℃; relative humidity ≤95% (at 40℃±2℃, non-condensing).
• Supply voltage: DC27V±3V (two-bus centralized power).
• Rated power: 3W.
• Light source: Ultra-bright green LED, DC2.8V–3.6V.
• Ingress protection: IP30.
• Emergency conversion time: ≤5 s.
• Emergency output surface luminance: >50 cd/m2 and <300 cd/m2.
• Standard: GB17945-2010 (Chinese CCCF).

Model and typical applications

• Model: SJ-BLJC-Ⅱ2LRE3W／AS1E
• Typical locations: high-rise buildings, shopping centers, entertainment venues, banks, hospitals, subway and rail stations, airports.
