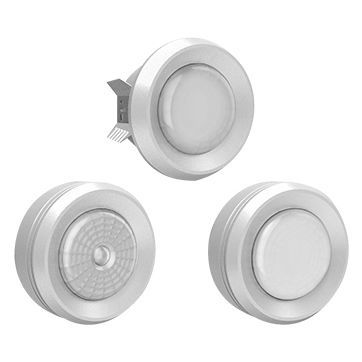

Emergency lighting SJ-ZFJC-E5W／ZX53

LEDIP30high-temperature

Product overview
Designed for centralized-power, central-control emergency lighting systems, the SJ-ZFJC-E5W series ground-indicating luminaire delivers low-consumption LED emergency illumination to guide evacuation during fire or power-failure events. Suitable for high-rise buildings, shopping centers, entertainment venues, banks, hospitals, metro and railway stations, airports and other crowded public spaces.

Model variants

• SJ-ZFJC-E5W/ZX53
• SJ-ZFJC-E5W/ZG53
• SJ-ZFJC-E5W/ZX51E

Product features

• Compatible with two-bus centralized power and non-polar control signals to reduce installation cost.
• Green high-efficiency LEDs for low power consumption and extended service life.
• Constant-current drive for stable luminous output.
• High temperature and corrosion resistance; suitable for most indoor environments.

Technical parameters

• Working environment: -10℃～+55℃, relative humidity ≤95% (at 40℃±2℃, no condensation)
• Working voltage: DC27V±3V (two-bus power)
• Rated power: 3W or 5W
• Light source: Ultra-bright LED, DC2.8V–3.6V
• Protection level: IP30
• Emergency luminous flux: >50 lm
• Emergency conversion time: ≤5 s
• Standard: GB17945-2010 (Chinese CCCF)
