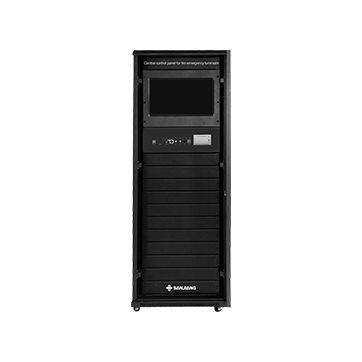

LED lighting controller SJ-C-100W/G7000

CANopenprogrammable

Overview
SJ-C-100W/G7000 emergency lighting controller is a system platform integrating fire alarm control, emergency lighting planning and evacuation guidance. Alarm and evacuation information are displayed visually on building plans for intuitive operation and centralized control. The system is scalable for network-distributed deployments and supports real-time network monitoring. Communication with field alarm hosts uses CAN (Control Area Network) bus technology for high real-time performance and reliability. The software provides a Windows-based, user-friendly graphical interface where fire monitoring terminals (detectors, control modules, etc.) are shown on vector plans to indicate alarm and fault conditions clearly.

Product Features

• 19-inch LCD with integrated industrial-grade computer.
• Automatic localization of fire alarm points and automatic routing/display of escape paths on plans.
• Windows-based OS with menu- and window-driven interface to simplify configuration and commissioning.
• Supports DXF format and vector graphics with zooming for clear status visualization.
• Equipped with a dedicated micro-printer for system status printouts.
• Multi-level user accounts with configurable privileges for controlled system administration.
• Historical logging of fire events, emergency actions, faults and operator actions.

Operation and Function

• On receipt of a fire alarm from a connected fire alarm controller, the G7000 automatically switches according to predefined floor plans and highlights the fire point position on the plan.
• Plans automatically display escape routes on the vector map; the controller sends commands to emergency lighting units to flash or indicate routes, guiding occupants toward exits.
• Designed for high real-time monitoring and reliable communications in networked applications using CAN bus technology.
• Plan-based terminal representation and clear anomaly indicators make incident management straightforward and efficient.
• Typical installation sites include office buildings, residential complexes, department stores, sports halls, exhibition spaces, libraries, workshops, supermarkets, hotels and a wide range of fire safety projects.

Technical specifications

• Operating environment: Indoor -10°C ~ 55°C; relative humidity ≤95% (40°C ±2°C, no condensation).
• Supply voltage: AC 220V ±10% / 50Hz.
• Rated power: 100W.
• Emergency working period: 180 minutes.
• Protection rating: IP30.
• Wiring topology: Two-bus system.
• Printer: Dedicated micro-printer.
• Standard: GB17945-2010 (Chinese CCCF).
