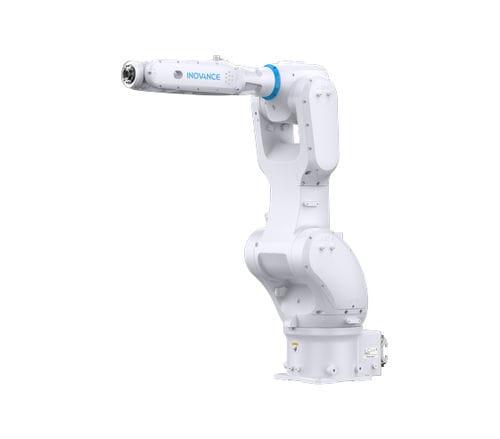

Articulated robot IR-R15

6-axiscuttingsorting

The IR-R15H&R20H series 6-axis robots are designed for industries such as displays, photovoltaics, and PCBs, featuring a compact design for maximum space efficiency. With world-class precision and speed, they ensure stable, precise, and fast operations. With high-strength protection, convenient cable routing, and 15-minute on-site zero-point recovery, they are easy to use and maintain. These robots are widely used in applications such as loading/unloading, assembly, handling, sorting, cutting, dispensing, and gluing. Overview High Compactness, High Performance, High Protection, Enhanced Ease of Use High Performance Maximum payload capacity up to 15 kg/20 kg and ±0.04 mm repeatability; world-class speed capability delivers stable, precise, and fast operations, meeting the demands of various applications such as film peeling, cutting, and gluing. Compact Design Highly compact design reduces footprint by 20%; supports floor, ceiling, wall, and angled mounting for flexible deployment in confined spaces, maximizing space utilization. Enhanced Ease of Use Supports 4x Φ6 air tubes and 24x I/O signal lines, with optional 8-pin Ethernet interface and up to 3 solenoid valves. Enables 15-minute on-site zero-point recovery, convenient cable routing and easy maintenance for uninterrupted production. High Protection IP67-rated high protection with multi-layered shielding ensures reliable operation in harsh environments, resisting dust, acids, and alkalis.
