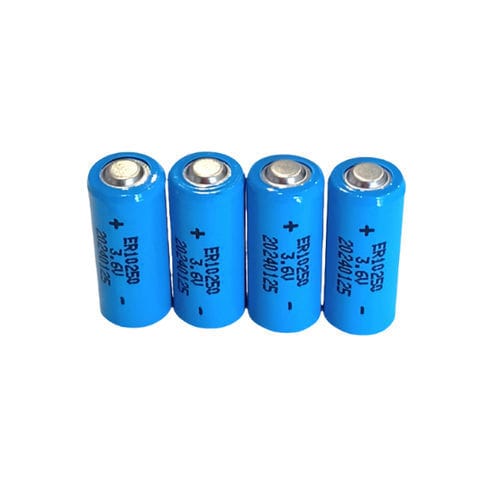

Lithium battery ER10250

cylindrical3 Vindustrial

The ER10250 Battery is a high-performance lithium battery designed for a variety of applications. It offers a voltage of 3.6V and a capacity of 400mAh, with dimensions of 10×25mm. The battery boasts a shelf life of 20 years and operates efficiently in temperatures ranging from -60 to 85℃. It supports a maximum discharge current of 25 mA continuously and 60 mA in pulse mode. - Applications: Electric power/water/gas meters, Memory ICs, and IoT Devices. - Certified By: UN38.3, CE, UL, ISO9001 Additional features include high energy density, a wide operating temperature range, low self-discharge rate during 25℃ storage, extended storage life under room temperature conditions, hermetic glass-to-metal sealing for enhanced safety and durability, and a non-flammable electrolyte for increased safety during usage. The battery complies with IEC86-4 safety standards and is safe for export. - Applications: Smart Meter, Alarms and Security, Memory Backup Power, GPS, Automotive Electronics, IoT Devices Storage recommendations include keeping the battery in a clean, cool environment (preferably below +20℃, not exceeding +30℃) and ensuring the area is dry and well-ventilated. - Non-rechargeable: These are non-rechargeable batteries. - Safety Hazards: Fire, explosion, and burn hazards associated with improper handling. - Do Not: Recharge, short circuit, crush, disassemble, heat above 100℃, or incinerate. - Temperature Range: Do not use the battery beyond the permitted temperature range. - Voltage: 3.6V - Capacity: 400mAh - Dimension: 10×25mm - Shelf Life: 20 Yrs - Operating Temperature: -60-85℃ - Max Discharge Current: 25 mA (continuous), 60 mA (Pulse) - Certified By: UN38.3, CE, UL, ISO9001
