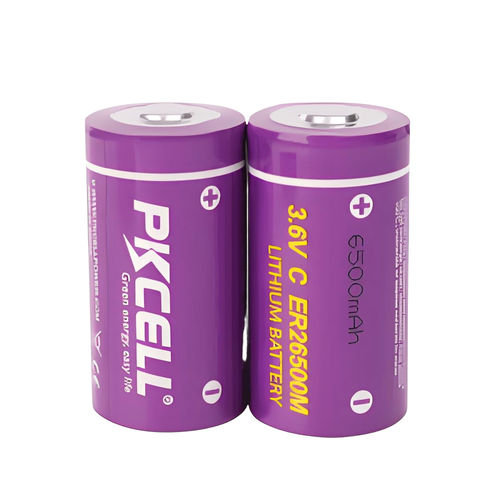

Lithium-thionyl chloride battery ER26500M

cylindrical3 Vindustrial

The ER26500M Battery is a high-performance lithium battery designed for a wide range of applications. It offers a voltage of 3.6V and a capacity of 6500 mAh, with dimensions of 26.2×45.0mm. The battery has a shelf life of 20 years and operates efficiently in temperatures ranging from -60 to 85℃. It supports a maximum discharge current of 1000 mA continuously and 2000 mA in pulse mode. - Applications: Electric power/water/gas meters, Memory ICs, and IoT Devices. - Certified By: UN38.3, CE, UL, ISO9001 Additional Features: - Wide Operating Temperature Range - Low Self-Discharge Rate during 25℃ storage - Extended Storage Life under room temperature conditions - Hermetic Glass-to-Metal Sealing for enhanced safety and durability - Non-Flammable Electrolyte for increased safety during usage - Compliance with IEC86-4 Safety Standards - Safe for Export Applications include Smart Meters, Alarms and Security, Memory Backup Power, GPS, Automotive Electronics, and IoT Devices. Storage Recommendations: - Store in a clean, cool environment (preferably below +20℃, not exceeding +30℃). - Ensure the area is dry and well-ventilated. Safety Precautions: - Non-rechargeable: These are non-rechargeable batteries. - Safety Hazards: Fire, explosion, and burn hazards associated with improper handling. - Do Not: Recharge, short circuit, crush, disassemble, heat above 100℃, or incinerate. - Temperature Range: Do not use the battery beyond the permitted temperature range. Characteristics / Specifications: - Voltage: 3.6V - Capacity: 6500 mAh - Dimension: 26.2×45.0mm - Shelf Life: 20 Yrs - Operating Temperature: -60-85℃ - Max Discharge Current: 1000 mA (continuous), 2000 mA (Pulse)
