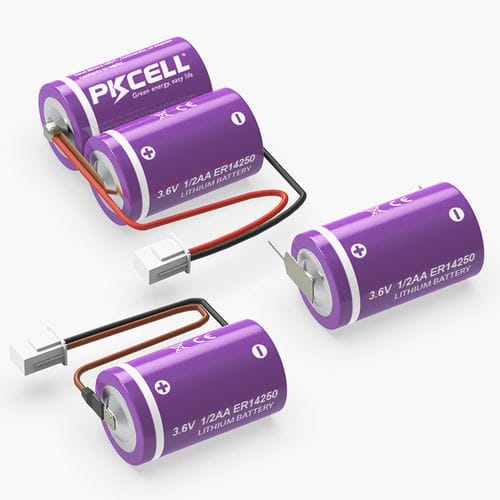

Lithium-thionyl chloride battery ER14250

cylindrical1/2AA type3 V

The ER14250 Battery is a high-performance lithium battery designed for a variety of applications. It offers a voltage of 3.6V and a nominal capacity of 1200mAh. The battery dimensions are 1/2AA Size-14.5×25.0mm, and it boasts a shelf life of 20 years. It operates efficiently in a wide temperature range from -60 to 85℃. The maximum discharge current is 30 mA continuously and 50 mA in pulse mode. Applications for this battery include electric power, water, and gas meters, memory ICs, and IoT devices. It is certified by UN38.3, CE, UL, and ISO9001, ensuring compliance with international safety and quality standards. - High Energy Density - Wide Operating Temperature Range - Low Self-Discharge Rate during 25℃ storage - Extended Storage Life under room temperature conditions - Hermetic Glass-to-Metal Sealing for enhanced safety and durability - Non-Flammable Electrolyte for increased safety during usage - Compliance with IEC86-4 Safety Standards - Safe for Export Additional applications include smart meters, alarms and security systems, memory backup power, GPS, automotive electronics, and IoT devices. For optimal storage, keep the battery in a clean, cool environment (preferably below +20℃, not exceeding +30℃) and ensure the area is dry and well-ventilated. - Non-rechargeable: These are non-rechargeable batteries. - Safety Hazards: Fire, explosion, and burn hazards associated with improper handling. - Do Not: Recharge, short circuit, crush, disassemble, heat above 100℃, or incinerate. - Temperature Range: Do not use the battery beyond the permitted temperature range. Characteristics / Specifications: - Voltage: 3.6V - Nominal Capacity: 1200mAh - Dimension: 1/2AA Size-14.5×25.0mm - Shelf Life: 20 Yrs - Operating Temperature: -60-85℃ - Max Discharge Current: 30 mA (continuous), 50 mA (Pulse) - Applications: Electric power/water/gas meters, Memory ICs, and IOT Devices. - Certified By UN38.3, CE, UL, ISO9001
