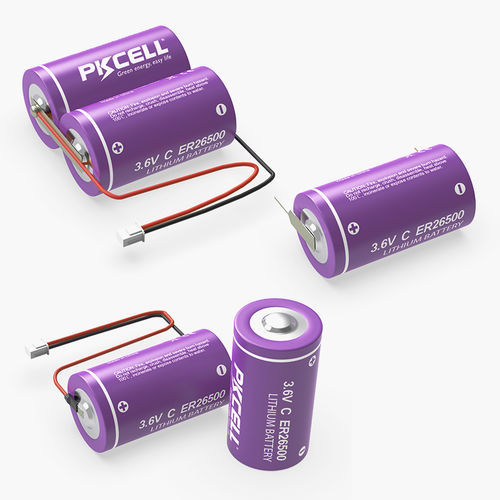

Lithium-thionyl chloride battery ER26500

C type3 Vfor automotive applications

The ER26500 Battery is a high-performance lithium battery designed for a variety of applications. It offers a voltage of 3.6V and a nominal capacity of 9000mAh, making it suitable for devices requiring reliable power over extended periods. The battery is C Size with dimensions of 26.2×50.5 mm and boasts a shelf life of 20 years. It operates efficiently in a wide temperature range from -60 to 85℃, with a maximum continuous discharge current of 200mA and a pulse discharge current of 400mA. - Voltage: 3.6V - Nominal Capacity: 9000mAh - Dimension: C Size- 26.2×50.5 mm - Shelf Life: 20 Yrs - Operating Temperature: -60-85℃ - Max Discharge Current: 200mA (continuous), 400mA (Pulse) - Applications: Electric power/water/gas meters, Memory ICs, and IoT Devices. - Certified By UN38.3, CE, UL, ISO9001 The battery is ideal for use in smart meters, alarms and security systems, memory backup power, GPS, automotive electronics, and IoT devices. It features high energy density, a wide operating temperature range, and a low self-discharge rate, ensuring extended storage life under room temperature conditions. The hermetic glass-to-metal sealing provides enhanced safety and durability, while the non-flammable electrolyte increases safety during usage. It complies with IEC86-4 safety standards and is safe for export. - High Energy Density up to - Wide Operating Temperature Range - Low Self-Discharge Rate: during 25℃ storage - Extended Storage Life: years under room temperature conditions. - Hermetic Glass-to-Metal Sealing: Provides enhanced safety and durability. - Non-Flammable Electrolyte: Increases safety during usage. - Compliance with IEC86-4 Safety Standards - Safe for Export: Storage recommendations include keeping the battery in a clean, cool environment (preferably below +20℃, not exceeding +30℃) and ensuring the area is dry and well-ventilated. The battery is non-rechargeable and should not be recharged, short-circuited, crushed, disassembled, heated above 100℃, or incinerated. It should not be used beyond the permitted temperature range. - Non-rechargeable: These are non-rechargeable batteries. - Safety Hazards: Fire, explosion, and burn hazards associated with improper handling. - Do Not: Recharge, short circuit, crush, disassemble, heat above 100℃, or incinerate. - Temperature Range: Do not use the battery beyond the permitted temperature range. **Caractéristiques / Spécifications techniques :** - Nominal Capacity: 8500 mAh - Max.Continuous Current: 150 mA - Max.Pulse Discharge Current: 250 mA - Temperature Range: -60-85℃ - Energy Density: 590 Wh/kg
