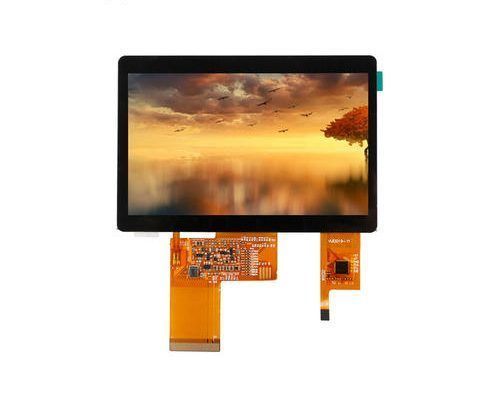

TFT LCD display module WTY043734A01LMI

IPSprojected capacitive touchscreenmultitouch screen

Product Overview
4.3-inch IPS TFT LCD Display model WTY043734A01LMI featuring 800×480 resolution, 40-pin RGB interface and 510 cd/m2 brightness. The module integrates a projected capacitive (PCAP) G+G touch panel with 5-point multi-touch driven by the N8110 touch IC (I2C). Optical or air bonding options and anti-reflection/anti-fingerprint coatings are available. The display supports wide operating and storage temperature ranges for industrial use.

Key Features

• Model: WTY043734A01LMI
• Size: 4.3 inches (Active area 95.04×53.86 mm)
• Resolution: 800 × 480 pixels
• Panel type: IPS TFT
• Interface: 40-pin RGB
• Brightness: 510 cd/m2
• Touch: Projected capacitive (G+G), 5-point
• Touch IC: N8110 (I2C)
• Bonding: Optical bonding or air bonding
• Anti-reflection/anti-fingerprint coatings available

Benefits

• Compact form factor for space-constrained installations
• Clear visuals on a small display thanks to 800×480 resolution
• Responsive capacitive touch with multi-touch gestures via I2C
• Wide viewing angles and stable color reproduction with IPS technology
• Flexible bonding and coating options to optimize durability and readability

Applications

• Industrial automation and control panels
• Human-machine interfaces (HMIs)
• Home automation panels
• Medical devices and instrumentation
• Self-service kiosks and terminals

Technical Parameters
Model: WTY043734A01LMI
Size: 4.3 inches
LCD Type: TFT
Display Type: IPS
Interface: 40-pin RGB
Pin No.: 40Pin
Resolution: 800x480
Brightness: 510cd/m2
Viewing Direction: Free o'clock
Contrast Ratio: 800:1
LCD Active Area (mm): 95.04×53.86
LCD Outline Dimension (mm): 105.42×67.07×2.75
Anti-Glare/Anti-Reflection/Anti-Fingerprints: Available
Touch Type: Capacitive (Projected)
Touch Points: 5 points
Touch IC Chip: N8110 (I2C)
Touch Structure: G+G
Touch Interface: IIC (I2C)
Touch Hardness: 6H
Operating Temperature: -10°C ~ +50°C
Storage Temperature: -20°C ~ +60°C
Bonding Method: Optical Bonding, Air Bonding
Support System: Windows, Android, Linux
Application Fields: Industrial Control, Home Automation, Medical Device, Self-service Terminal

Technical Specifications

• Model: WTY043734A01LMI
• Screen size: 4.3 inches
• Resolution: 800 x 480
• Panel type: IPS TFT
• Interface: 40-pin RGB
• Brightness: 510 cd/m2
• Touch: PCAP, G+G, 5-point (N8110, I2C)
• Active area (mm): 95.04 × 53.86
• Outline dimension (mm): 105.42 × 67.07 × 2.75
• Operating temp: -10°C to +50°C
• Storage temp: -20°C to +60°C
• Bonding options: Optical bonding, Air bonding
• Supported OS: Windows, Android, Linux
