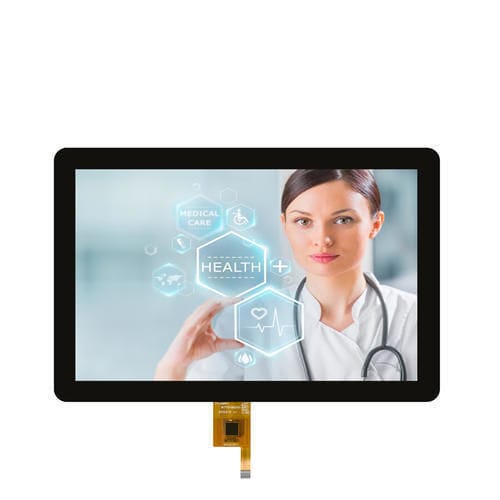

TFT LCD display module WTY101A08A01LM

IPScapacitive touch screenmultitouch screen

Product Overview
This 10.1-inch TFT LCD touch display (model WTY101A08A01LM) integrates an IPS panel with 1280×800 resolution and an LVDS video interface. The module offers wide viewing angles, vivid color reproduction and a 60Hz refresh rate. It is sunlight-readable, available with optical or air bonding, and supports a G+G capacitive touch panel driven by the GT928 touch controller via an I2C (IIC) interface, making it suitable for diverse indoor and outdoor B2B applications.

Display Features

• High definition: 1280×800 resolution for clear image rendering.
• IPS technology: wide viewing angles and consistent color at 60Hz refresh.
• Sunlight readability: enhanced visibility under high ambient light.
• LVDS interface: stable video signal transmission with low latency.
• Bonding options: optical bonding or air bonding to improve robustness and optical performance.

Touch Panel Features

• Capacitive touch: multi-touch support up to 10 touch points.
• Structure: G+G (glass+glass) for scratch resistance and durability.
• Touch IC: GT928 controller for reliable touch detection.
• Touch interface: I2C (IIC) communication.
• Surface hardness: 6H.

Overall Features

• Compact 10.1-inch form factor for integration into various devices.
• Wide operating temperature range for multiple environments.
• Broad OS support: Windows, Android, Linux, UNIX, etc.

Applications

• Industrial control: HMI panels, machine interfaces, process monitoring.
• Smart home control panels and appliances.
• Medical devices: portable equipment, patient monitoring.
• Automotive: IVI, instrument clusters, head units.
• Portable devices: tablets, handheld terminals.
• Digital signage: indoor/outdoor displays and kiosks.

Technical Parameters (table)

• Model: WTY101A08A01LM
• Size: 10.1 inches (diagonal) | 1280×800
• LCD type: TFT
• Display type: IPS
• Interface: LVDS (video) / RGB indicated
• Pin count: 40Pin
• Brightness: 300 cd/m²
• Contrast ratio: 1000:1
• Viewing direction: all o'clock; viewing angle 80/80/80/80 (Typ.)
• Active area: 216.96 × 135.60 mm
• Outline dimension: 229.25 × 149.05 × 2.6 mm
• Anti-reflective options: anti-glare / anti-reflection / anti-fingerprint available
• Touch: capacitive G+G, 10-point, GT928 IC, I2C interface
• Surface hardness: 6H
• Bonding method: optical bonding, air bonding
• Operating temperature: -10°C to +50°C
• Storage temperature: -20°C to +60°C
• Supported systems: Windows, Android, Linux, UNIX

Specifications / Technical specifications

• Model: WTY101A08A01LM
• Diagonal size: 10.1 inches
• Resolution: 1280 × 800
• Panel type: TFT IPS
• Interface: LVDS (video)
• Pin count: 40Pin
• Brightness: 300 cd/m²
• Contrast ratio: 1000:1
• Viewing angle: all o'clock, 80/80/80/80 (Typ.)
• Active area: 216.96 × 135.60 mm
• Outline dimension: 229.25 × 149.05 × 2.6 mm
• Touch: capacitive G+G, 10-point, GT928 IC, I2C interface
• Surface hardness: 6H
• Bonding options: optical or air bonding
• Operating temp: -10°C to +50°C; Storage temp: -20°C to +60°C
• Applications: industrial control, smart home, medical, automotive, portable devices, digital signage
