TFT LCD display module WTY070144A15LM

TNcapacitive touch screenmultitouch screen

Product overview

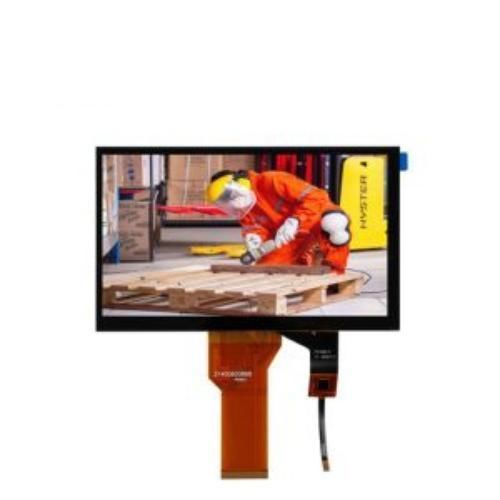

The 7-inch 800×480 RGB TN TFT LCD touch display (Model: WTY070144A15LM) is a color TFT panel with a 50-pin RGB interface and a G+G capacitive touch panel. It features 450 cd/m² brightness, sunlight readability options, multi-touch support and wide operating temperature range, making it suitable for industrial and embedded applications.

Key features

• Size: 7-inch diagonal
• Resolution: 800×480 pixels
• Panel type: TN
• Color arrangement: RGB strip
• Touch technology: Capacitive (G+G)
• Touch controller: GT911
• Touch interface: I2C (IIC)
• LCD interface: Standard 50-pin RGB
• Multi-touch: Up to 5 points
• Touch hardness: 6H

Advantages

• Clear and responsive touch with G+G capacitive panel for accurate fingertip response
• Good scratch resistance and improved mechanical durability due to dual glass construction
• Energy-efficient I2C touch interface
• Supports gestures and multi-point input (up to 5 points)
• Designed for long-term reliability in industrial environments

Production & Availability
Production state: In production
Stock quantity: 10 pieces

Technical specifications

• Model: WTY070144A15LM
• Display size: 7 inches
• Display type: TFT (TN)
• Resolution: 800×480
• Brightness: 450 cd/m²
• Viewing angles: 70/70/50/70 (deg.)
• Contrast ratio: 500:1
• Active area (mm): 154.08 × 85.92
• Outline dimension (mm): 164.90 × 100.00 × 5.70
• Interface: 50-pin RGB (LCD) / I2C (touch)
• Touch structure: G+G (Glass + Glass)
• Touch IC: GT911
• Touch points: 5
• Touch hardness: 6H
• Operating temperature: -20°C ~ +70°C
• Storage temperature: -30°C ~ +80°C
• Bonding method: Optical bonding, Air bonding
• Supported systems: Windows, Android, Linux

Applications & Compatibility

• Industrial control panels and HMI
• Home automation interfaces
• Medical devices and diagnostic equipment
• Self-service kiosks and terminals
• Embedded systems and custom displays
