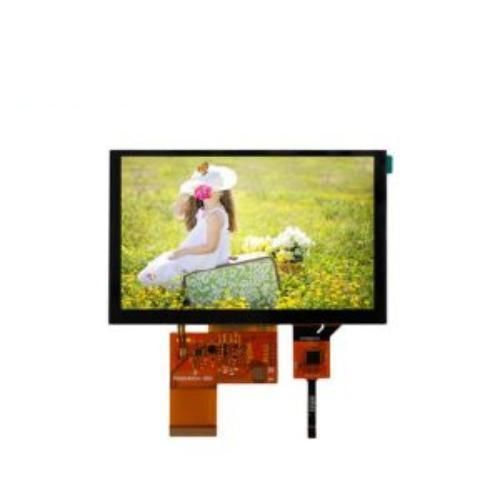

TFT LCD display module WTY050667A01LMI

IPScapacitive touch screenmultitouch screen

Product Summary

• 5-inch 800×480 RGB IPS TFT LCD display (Model WTY050667A01LMI)
• Standard 40-pin RGB interface
• G+G capacitive touch panel with GT911 touch controller
• I2C (IIC) interface for touch, 5-point multi-touch, 500 cd/m² brightness
• Wide operating temperature range and sun-readable high-brightness panel

Overview
The WTY050667A01LMI is a 5-inch IPS TFT LCD module designed for embedded and industrial applications. It provides a 800×480 resolution with wide viewing angles and a high-brightness panel suitable for readable outdoor or high ambient light environments. The module supports tape bonding and offers optical or air bonding options.

Display Features

• IPS technology: consistent color and wide viewing angles
• 800×480 resolution: clear, sharp images for UI and graphics
• High brightness (500 cd/m²) and sun-readable performance
• G+G capacitive touch structure with 6H hardness rating
• 5-point touch with GT911 controller and I2C interface
• Standard 40-pin RGB connector for video signal

Key Advantages & Characteristics

• Responsive capacitive touch with accurate multi-touch detection
• Easy integration via standard RGB and I2C interfaces
• Durable front glass (6H) and optional anti-glare/anti-fingerprint coatings
• Operates reliably across a wide temperature range (-10°C to +50°C)
• Low maintenance and configurable bonding options

Production & Availability

• Production status: In production
• Stock quantity: 10 pieces

Technical Parameter

• Model: WTY050667A01LMI
• Size: 5 inches
• LCD type: TFT
• Display type: IPS
• Resolution: 800×480
• Interface: RGB (40-pin)
• Brightness: 500 cd/m²
• Contrast ratio: 600:1
• Viewing angle: All o'clock, 80/80/80/80°
• Active area (mm): 108.00 × 64.80
• Outline dimension (mm): 120.70 × 75.8 × 3.00
• Touch: Capacitive G+G, GT911 touch IC, I2C interface
• Touch points: 5 points (page references up to 10 simultaneous points)
• Touch hardness: 6H
• Operating temperature: -10°C to +50°C
• Storage temperature: -20°C to +60°C
• Bonding: Optical bonding or air bonding
• Supported systems: Windows, Android, Linux
• Typical applications: industrial control, home automation, medical devices, self-service terminals

Customization & Options

• Environmental coatings: anti-glare, anti-fingerprint, vandal-resistant options
• Panel finishes: glossy or anti-glare; customizable size, shape, thickness and colors
• Interface and mechanical customization available on request to fit integration requirements

Specifications

• Model: WTY050667A01LMI
• Size: 5" | Resolution: 800×480 | Brightness: 500 cd/m²
• Interface: 40-pin RGB | Touch: G+G capacitive, GT911, I2C
• Operating temp: -10°C ~ +50°C | Storage temp: -20°C ~ +60°C
