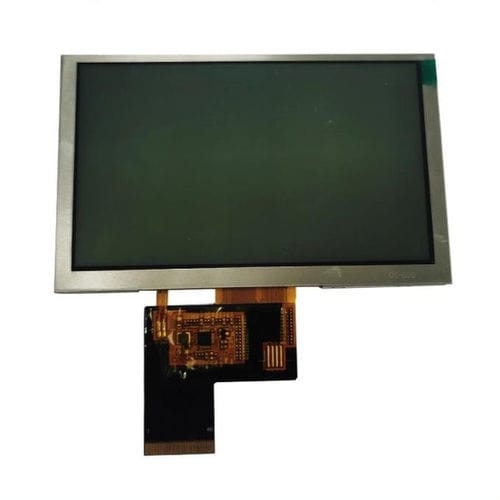

TFT LCD display module YX50098A

colortransflective800 x 480

Description
The YX50098A is a professional 5.0-inch transflective TFT LCD display module designed for industrial HMI and embedded systems that must operate reliably in both indoor and outdoor lighting conditions. The transflective design uses ambient light to improve visibility in bright environments while retaining a white LED backlight for clear readability in low light. The module is driven by HX8264 + HX8664 ICs and supports 16-bit, 18-bit and 24-bit RGB interfaces for straightforward integration into control panels and industrial equipment.

Basic Specifications
Display Size: 5.0 inch
Display Technology: Transflective TFT LCD
Resolution: 800 × 480
Display Mode: Normally White
Active Area: 108 × 64.8 mm
Outline Dimensions: 120.7 × 75.9 × 2.95 mm
Pixel Pitch: 0.135 × 0.135 mm
Viewing Direction: 6 O'Clock
Driver IC: HX8264 + HX8664
Interface: 16/18/24-bit RGB
Display Colors: 16.7M
Operating Voltage: 3.3 V (typ.)
Operating Temperature: -20°C ~ +70°C
Storage Temperature: -30°C ~ +80°C

Optical Characteristics
Display Technology: Transflective TFT
Resolution: 800 × 480
Reflective Contrast Ratio (typical): 20:1
Transmissive Contrast Ratio (typical): 35:1
Reflectance (reflective mode, typical): 14.3%
Response Time (typical): 25–30 ms
Viewing Angle (typical): 65° / 65° / 35° / 55°

Operating Conditions
Operating Temperature: -20°C ~ +70°C
Storage Temperature: -30°C ~ +80°C
Supply Voltage: 2.7–3.6 V (typ. 3.3 V)

Mechanical & Integration Notes
Module size: 120.7 × 75.9 × 2.95 mm; Active area: 108 × 64.8 mm. Driver ICs: HX8264 + HX8664. Supported interfaces: 16-bit, 18-bit, 24-bit RGB. Normally White mode and industrial temperature range make the module suitable for HMI, control panels and embedded industrial applications.

caractéristiques / spécifications techniques

• Model: YX50098A
• Display size: 5.0 inch
• Resolution: 800 (RGB) × 480
• Display technology: Transflective TFT LCD
• Display mode: Normally White
• Active area: 108 × 64.8 mm
• Outline dimensions: 120.7 × 75.9 × 2.95 mm
• Pixel pitch: 0.135 × 0.135 mm
• Viewing direction: 6 O'Clock
• Driver ICs: HX8264 + HX8664
• Interface: 16/18/24-bit RGB
• Display colors: 16.7M
• Operating voltage: Typ. 3.3 V (range 2.7–3.6 V)
• Operating temperature: -20°C to +70°C
• Storage temperature: -30°C to +80°C
• Optical: Reflectance ~14.3% (reflective mode); Reflective contrast ratio ~20:1; Transmissive contrast ratio ~35:1; Response time 25–30 ms; Viewing angles 65°/65°/35°/55°
