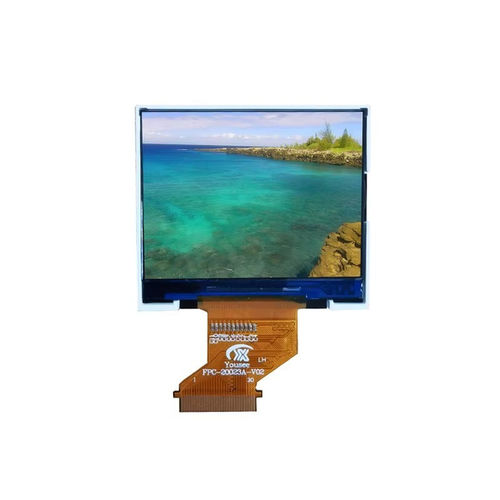

TFT LCD display module YX20035A

transflective240 x 3202"

Overview
The YX20035A is a 2.0-inch transflective TFT LCD module engineered for applications that demand outdoor readability, low power consumption and stable performance across varied lighting conditions. Equipped with the ST7789V driver and a 16-bit MCU interface, the module offers a 240×320 RGB resolution and compact mechanical dimensions suitable for embedded industrial and portable devices.

Transflective Technology
The transflective optical structure combines reflection and backlight modes: ambient light improves visibility and reduces backlight usage in bright outdoor environments, while the integrated white LED backlight ensures clear, vivid images indoors or in low light. This dual-mode approach enhances battery life and usability in field applications.

Key Advantages

• Excellent readability in direct sunlight
• Lower power draw for outdoor operation
• Extended battery life for portable equipment
• Clear image quality both indoors and outdoors
• Reduced reliance on high-brightness backlighting
• Reliable performance for industrial and field use

Typical Applications

• Industrial handheld terminals
• Smart utility meters
• GPS navigation devices
• Outdoor controllers and displays
• Medical instruments
• Agricultural electronics
• Marine instruments
• Portable test and measurement devices

Basic Specifications (summary)
Display Size: 2.0 inch
Resolution: 240 (RGB) × 320
Display Technology: Transflective TFT LCD
LCD Type: TFT-LCD / Transflective
Active Area: 30.60 × 40.80 mm
Outline Dimensions: 38.52 × 52.74 × 2.40 mm
Pixel Pitch: 0.1926 × 0.1926 mm
Viewing Direction: 8 O'Clock
Driver IC: ST7789V
Interface: 16-bit MCU
Backlight: White LED
Brightness: 250 cd/m² (Typ.)
Contrast Ratio: 800 : 1
Analog Operating Voltage: 3.3 V Typ.

Optical & Performance
Resolution (typical): 240 × 320
Contrast Ratio (typical): 800 : 1
Brightness (typical): 250 cd/m²
Response Time (typical): 25 ms
Color Gamut (typical): 60%
Luminance Uniformity (typical): 80%
Viewing Angle (CR ≥ 10): 80° / 80° / 80° / 80°

Operating Conditions
Operating Temperature: -20°C ~ +70°C
Storage Temperature: -30°C ~ +80°C
Humidity: ≤90% RH (60°C)

Mechanical
Compact outline dimensions and a supplied mechanical drawing facilitate integration into space-constrained designs. The module balances sunlight readability, energy efficiency and dependable operation for demanding industrial environments.

Technical specifications

• Model: YX20035A
• Display size: 2.0 inch
• Resolution: 240×320 (RGB)
• Display technology: Transflective TFT LCD
• Driver IC: ST7789V
• Interface: 16-bit MCU
• Active area: 30.60 × 40.80 mm
• Outline dimensions: 38.52 × 52.74 × 2.40 mm
• Pixel pitch: 0.1926 × 0.1926 mm
• Viewing direction: 8 O'Clock
• Backlight: White LED
• Brightness: 250 cd/m² (typ.)
• Contrast ratio: 800 : 1
• Response time: 25 ms
• Color gamut: 60%
• Luminance uniformity: 80%
• Viewing angle (CR≥10): 80°/80°/80°/80°
• Analog operating voltage: 3.3 V (typ.)
• Operating temperature: -20°C to +70°C
• Storage temperature: -30°C to +80°C
• Humidity: ≤90% RH (60°C)
