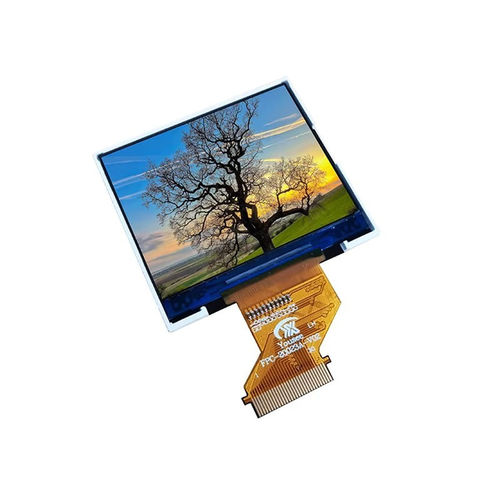

TFT LCD display module YX240320-291

transflective240 x 3202.8"

Product Overview
The YX240320-291 is a professional Transflective TFT LCD display module developed for industrial and portable electronic products that require superior sunlight visibility, low power consumption, and reliable operation under varying lighting conditions. The transflective design uses a semi-reflective optical layer to utilize ambient light for improved readability in bright sunlight while an integrated white LED backlight ensures visibility indoors or in low-light environments.

Key Features

• Display Size: 2.83 inch
• Resolution: 240 (RGB) × 320
• Display Technology: Transflective TFT LCD
• Viewing Direction: 3 O'Clock
• Driver IC: HX8367-A
• Interfaces: MCU / SPI / RGB
• Backlight: White LED

Basic Specifications (table)
Item — Specification
Display Size — 2.83 inch
Display Technology — Transflective TFT LCD
Resolution — 240 (RGB) × 320
LCD Type — TFT / Transflective
Active Area — 43.20 × 57.60 mm
Outline Dimensions — 50.00 × 69.20 × 2.85 mm
Pixel Pitch — 0.18 × 0.18 mm
Viewing Direction — 3 O'Clock
Driver IC — HX8367-A
Interface — MCU / SPI / RGB
Backlight — White LED
Typical Brightness — 120 cd/m²
Typical Contrast Ratio — 72:1
Module Power Consumption — 208 mW

Optical Characteristics (table)
Parameter — Typical
Display Technology — Transflective TFT
Resolution — 240 × 320
Brightness — 120 cd/m²
Contrast Ratio — 72:1
Response Time — 35 ms
Reflectivity — 4.23%
NTSC Color Gamut — 40%

Operating Conditions (table)
Item — Range
Operating Temperature — -20°C ~ +70°C
Storage Temperature — -30°C ~ +80°C
Humidity — ≤90% RH (Max. 60°C)

Applications
Designed for integration into embedded systems and suitable for industrial, medical, transportation, and portable electronic equipment where outdoor readability and low power consumption are important.

Mechanical & Visual
Compact outline with dimensions 50.0 × 69.2 × 2.85 mm and active area 43.2 × 57.6 mm. Mechanical drawing and module imagery are provided by the manufacturer for PCB/mechanical integration reference.

Technical Specifications

• Model: YX240320-291
• Display size: 2.83 inch
• Resolution: 240(RGB) × 320
• Display type: Transflective TFT LCD
• Driver IC: HX8367-A
• Interfaces: MCU, SPI, RGB
• Active area: 43.20 × 57.60 mm
• Outline dimensions: 50.00 × 69.20 × 2.85 mm
• Pixel pitch: 0.18 × 0.18 mm
• Viewing direction: 3 O'Clock
• Backlight: White LED
• Typical brightness: 120 cd/m²
• Typical contrast ratio: 72:1
• Response time: 35 ms
• Reflectivity: 4.23%
• NTSC color gamut: 40%
• Module power consumption: 208 mW
• Operating temperature: -20°C ~ +70°C
• Storage temperature: -30°C ~ +80°C
• Humidity: ≤90% RH (Max. 60°C)
