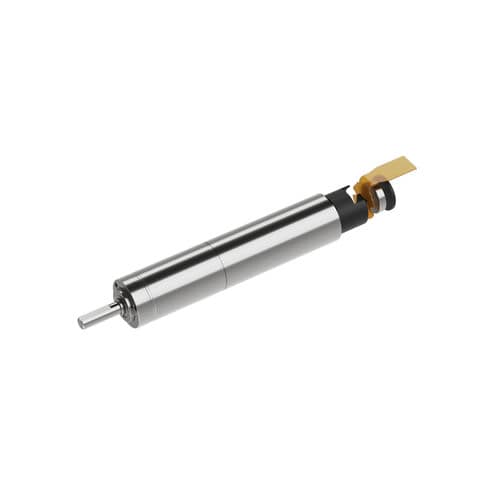

Planetary gear-motor ZWSMD012012 seriespermanent magnetbrushless DCcoaxial
Add to favorites
Compare this product
Characteristics
- Motor type
- permanent magnet, brushless DC
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Power
- 0 W...10 W
- Torque
- 1 - 5 Nm, 0.2 - 0.5 Nm, 0.5 - 1 Nm, 0 - 0.1 Nm
- Performance
- low-noise, high-torque, high-power, high-performance, high-speed, high-precision
- Product applications
- industrial, for medical equipment, for automation, for industrial applications, for automobiles, for the food industry
- Certifications
- CE, OHSAS 18001, ISO
- Other characteristics
- custom-made
- Gear ratio
Max.: 1,526 unit
Min.: 16 unit
- Operating temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)- Rotational speed
16,000 rpm
(100,530.9649 rad.min-1)
Description
·High torque density ·High efficiency ·High precision ·Low noise
Diameter
12mm
Voltage Range
12V
Max. Transmittable Power
2.2W
Max. Continuous Torque
0.35Nm
Bearing at Output
Ball bearing
Max. efficiency (%)
55-75
Application：
·Robotics ·Healthcare ·Consumer Electronics ·Industrial Automation
·Optical Equipment ·Automotive Electronics ·Aerospace and Precision Instruments
