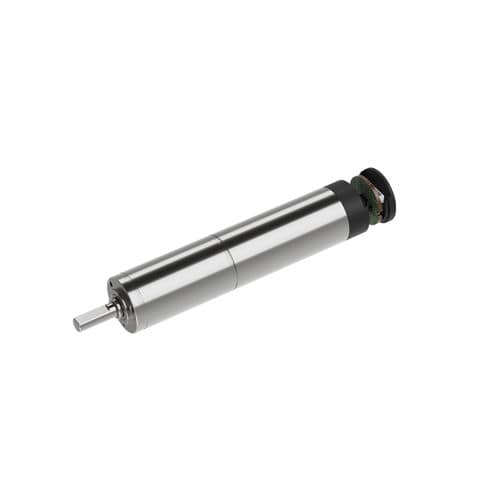

Planetary gear-motor ZWSMD016016 seriesbrushless DCcoaxialsolid-shaft
Add to favorites
Compare this product
Characteristics
- Motor type
- brushless DC
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Power
- 10 W...50 W, 0 W...10 W
- Torque
- 1 - 5 Nm, 0.2 - 0.5 Nm, 0.5 - 1 Nm, 0 - 0.1 Nm
- Performance
- high-torque, high-efficiency, high-power, high-performance, high-speed, precision, high load capacity, high-capacity
- Product applications
- industrial, for medical equipment, for automation, for conveyor, for lifting applications, for vehicles, for pump
- Certifications
- CE, OHSAS 18001, ISO
- Gear ratio
138 unit
- Operating temperature
Min.: -30 °C
(-22 °F)Max.: 100 °C
(212 °F)- Rotational speed
16,000 rpm
(100,530.9649 rad.min-1)
Description
High Torque Output, Deceleration Ratio Optional
Diameter
16mm
Voltage Range
12V
Max. Transmittable Power
8W
Max. Continuous Torque
0.9Nm
Bearing at Output
Ball bearing
Max. efficiency (%)
60-80
Application：
·Laboratory equipment ·measuring instruments ·intelligent logistics ·high-end toys
·micro-satellites ·optical and communication equipment ·automation equipment
·sensor adjustment mechanism ·smart home equipment ·medical diagnostic equipment
·rehabilitation equipment ·humanoid robots, etc
