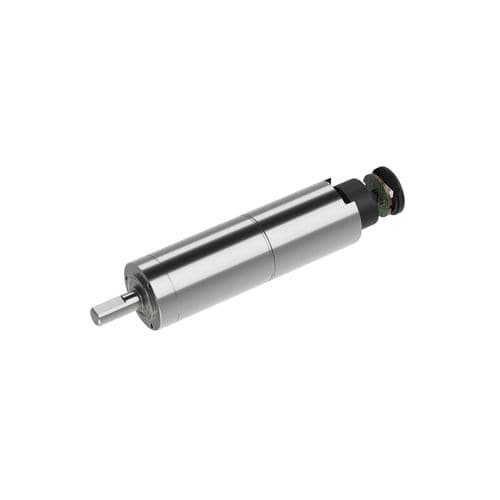

Planetary gear-motor ZWSMD022022 seriesbrushless DCcoaxialsolid-shaft
Add to favorites
Compare this product
Characteristics
- Motor type
- brushless DC
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Power
- 0 W...10 W
- Torque
- 0.5 - 1 Nm, 0 - 0.1 Nm, 0.1 - 0.2 Nm
- Performance
- low-noise, high-torque, high-efficiency, high-power, high-performance, high-speed, precision
- Product applications
- industrial, for medical equipment, for automation, for industrial applications, for automobiles, for the food industry
- Certifications
- CE, OHSAS 18001, ISO
- Other characteristics
- custom-made
- Gear ratio
Max.: 1,526 unit
Min.: 3.72 unit
- Operating temperature
Max.: 85 °C
(185 °F)Min.: -30 °C
(-22 °F)- Rotational speed
8,000 rpm
(50,265.4825 rad.min-1)
Description
Lightweight ·High Transmission Efficiency ·and High Torque
Diameter
22mm
Voltage Range
24V
Max. Transmittable Power
66W
Max. Continuous Torque
5.5Nm
Bearing at Output
Ball bearing
Max. efficiency (%)
83-96
Application：
·Healthcare ·Industrial Automation ·Home Automation
·Optical Equipment ·Automotive Electronics ·CE
