DC motor MC0824-01
brushless12 Vcoreless

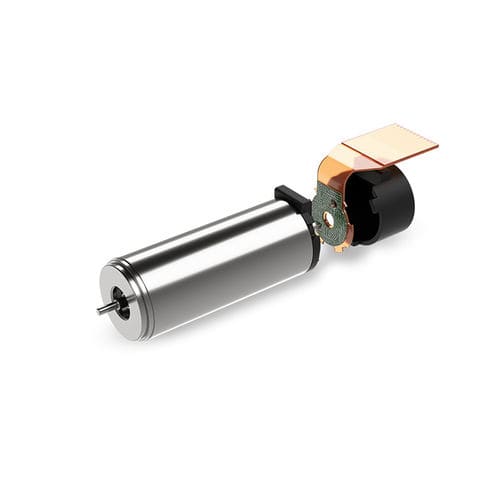

DC motor - MC0824-01 - Shenzhen ZhaoWei Machinery & Electronics Co., Lt - brushless / 12 V / coreless
DC motor - MC0824-01 - Shenzhen ZhaoWei Machinery & Electronics Co., Lt - brushless / 12 V / coreless
DC motor - MC0824-01 - Shenzhen ZhaoWei Machinery & Electronics Co., Lt - brushless / 12 V / coreless - image - 2
DC motor - MC0824-01 - Shenzhen ZhaoWei Machinery & Electronics Co., Lt - brushless / 12 V / coreless - image - 3
DC motor - MC0824-01 - Shenzhen ZhaoWei Machinery & Electronics Co., Lt - brushless / 12 V / coreless - image - 4
DC motor - MC0824-01 - Shenzhen ZhaoWei Machinery & Electronics Co., Lt - brushless / 12 V / coreless - image - 5
DC motor - MC0824-01 - Shenzhen ZhaoWei Machinery & Electronics Co., Lt - brushless / 12 V / coreless - image - 6
Add to favorites
Compare this product

Characteristics

Type
DC, brushless
Voltage
12 V
Configuration
coreless, compact
Intensity

1.65 A

Torque

2.2 Nm
(1.622637 ft.lb)

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 38,500 rpm
(241,902.6343 rad.min-1)

Diameter

8 mm
(0.31 in)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 125 °C
(257 °F)

Description

The MC0824-01 motor boasts a compact 8mm diameter, facilitating handheld device miniaturization. Its proprietary coil design and optimized bearing assembly enable impressive speeds of up to 38,500 rpm. With lower power losses, the motor achieves higher efficiency, ensuring smooth rotation without cogging torque. The MC0824-01 motor delivers a maximized performance-to-price ratio, making it a compelling choice for various applications. Diameter: 8mm Rated Voltage: 12V Constant torque: 2.2mNm/A Speed Constant: 3155rpm/V
