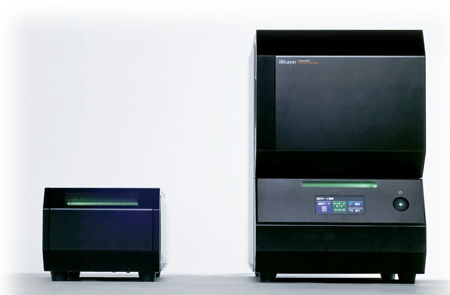

PVD deposition machine iMLayer

Overview
The iMLayer matrix vapor deposition system performs sample pretreatment (matrix application) for MALDI-MS imaging on analysis platforms such as the iMScope imaging mass microscope and the MALDI-7090. The deposition method is used to achieve high spatial resolution by producing fine matrix crystal grains. Automated control enables reproducible coating thickness as configured by the user.

Features

• Generation of finer matrix crystal grains via vapor deposition for improved spatial resolution
• Automated coating thickness control for enhanced reproducibility
• Intuitive touch panel operation

Applications
Documents | Creation Date
Mass Imaging Analysis of Organoids on iMScope QT — 2025-09-29
MS imaging of natural toxin colchicine in autumn crocus bulb using iMScope QT — 2024-10-01
Metabolites Analysis in Mouse Brain Using the Image Analysis Function of IMAGEREVEAL MS — 2024-09-25

Downloads
Brochure: iMLayer [PDF / 685.16KB]

Technical specifications

• Purpose: Sample pretreatment (matrix application) for MALDI-MS imaging
• Deposition method: Matrix vapor deposition producing fine crystal grains for high spatial resolution
• Coating control: Automated coating thickness control for reproducibility
• Operation: Touch panel interface
• Compatibility: Designed for use with iMScope imaging mass microscopes and MALDI-7090
• Primary benefits: Fine matrix crystals, high spatial resolution, reproducible coatings
