Water cooler

flue gasfor air conditioningfor the energy sector

Product overview

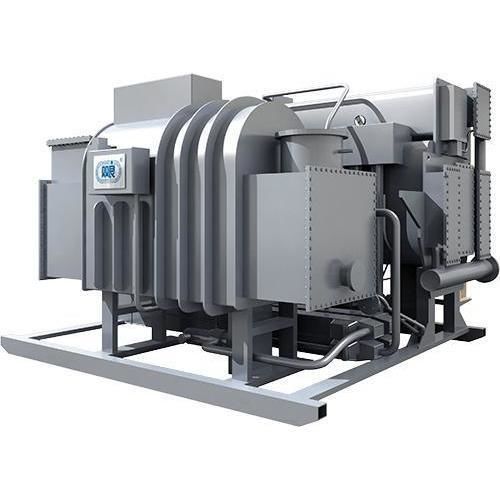

The flue gas operated lithium bromide (LiBr) absorption chiller/heater recovers waste heat from high‑temperature flue gases (for example exhaust from engines, turbines or combustion equipment) to produce chilled water and/or hot water for industrial and comfort utilities.

Applications
Designed for cogeneration and trigeneration schemes, the unit supports comfort cooling and process cooling/heating. It can be configured to work with one or more supplementary heat sources to adapt to site conditions and operational requirements.

• Flue gas + engine jacket water (supplementary heat): maximizes engine waste‑heat recovery and overall system cooling capacity, improving combined energy efficiency (up to ~85%).
• Flue gas + direct fired burner (supplementary heat): burner provides backup heat when flue gas flow or temperature is insufficient.
• Flue gas + steam (supplementary heat): suitable for sites with surplus steam; steam supplements or backs up heat input to increase cooling output.

Function
Delivers chilled water >0 °C and hot water ≤95 °C for comfort conditioning and industrial process applications.

Capacity range
233–11,630 kW (20–1,000 × 10^4 kcal/h) / 186–9,280 kW (16–800 × 10^4 kcal/h) depending on configuration.

Driving sources
Flue gas; flue gas combined with natural gas, steam or hot water.

Typical cases

• Square Textile Ltd (Bangladesh): 5 × Flue Gas Operated LiBr Absorption Chiller — Total cooling capacity: 2,365 USRT.
• Lucky One (Karachi, Pakistan): 2 × Flue Gas Operated LiBr Absorption Chiller — Total cooling capacity: 1,683 USRT.
• IAEA - International Atomic Energy Agency (Austria): 1 × Flue Gas Operated LiBr Absorption Chiller — Total cooling capacity: 185 USRT.

Technical specifications

• Type: Flue gas operated lithium bromide (LiBr) absorption chiller/heater.
• Main functions: Produce chilled water (>0 °C) and hot water (≤95 °C) for comfort and process use.
• Main applications: Cogeneration and trigeneration systems for comfort cooling and industrial process cooling/heating.
• Supplementary heat options: engine jacket water, direct fired burner, steam — configurable alone or in combination.
• Overall energy efficiency: up to approximately 85% when combining flue gas with engine jacket water.
• Capacity range: 233–11,630 kW or 186–9,280 kW depending on configuration.
• Driving sources: flue gas; flue gas + natural gas / steam / hot water.
• Flexible combinations: e.g., flue gas + jacket water + burner; flue gas + jacket water + steam.
