Gas cooler-heater

wateroilfor the pharmaceutical industry

Product overview

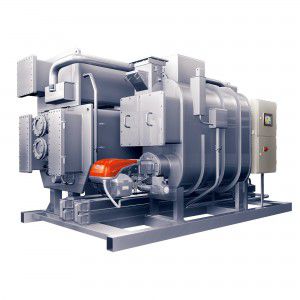

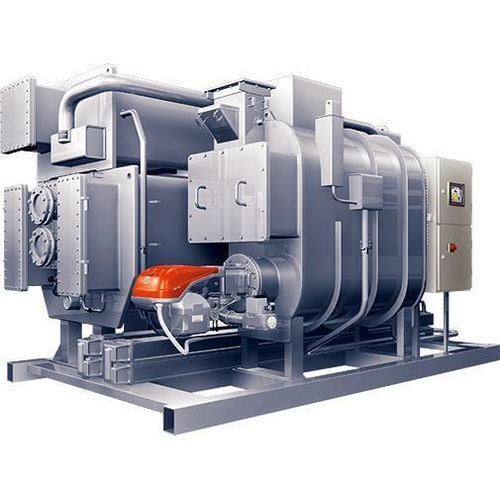

Direct-fired lithium bromide absorption chiller/heater is a large-capacity industrial unit for cooling or heating. It uses gas (natural gas, town gas, LPG) or oil (diesel) as the primary driving energy with only limited electricity as auxiliary power, lithium bromide solution as the absorbent and water as the refrigerant. The system is designed to lower electrical consumption and to smooth peak-valley load differences, making it suitable for regions with abundant gas resources and for facilities seeking fuel-driven HVAC solutions.

Types

• H2 direct-fired chiller/heater (COP: 1.34)
• H3 direct-fired chiller/heater (COP: 1.25)
• J type direct-fired chiller/heater (COP: 1.42)

Function
Provides chilled water above 0°C and hot water up to 95°C. Applicable to comfort cooling/heating and a variety of industrial process heating/cooling requirements.

Capacity Range
233–11,630 kW (20–1000×10^4 kcal/h) or 186–9,280 kW (16–800×10^4 kcal/h). Configurable for single- or multi-unit installations.

Driving Sources

• Natural gas
• Light oil
• Heavy oil
• Producer gas / other fossil gases
• Biogas

Typical cases

• Keck Seng (M) Sdn Bhd (Malaysia): 2×H3 type direct-fired LiBr absorption chillers; total cooling capacity: 1322 USRT; fuel: biogas from biomass.
• Dolmen City (Karachi, Pakistan): 6×direct-fired LiBr absorption chillers; total cooling capacity: 8597 USRT.
• Government Campus Plaza (Trinidad & Tobago): 5×direct-fired absorption chillers; total cooling capacity: 3720 USRT.

Technical specifications

• Product type: Direct-fired lithium bromide absorption chiller/heater
• Absorbent: Lithium bromide solution
• Refrigerant: Water
• Driving energy: Natural gas, LPG, light oil, heavy oil, producer gas, biogas
• Auxiliary power: Limited electricity only
• Outputs: Chilled water (>0°C) and hot water (≤95°C)
• Available types and COPs: H2 (COP 1.34), H3 (COP 1.25), J (COP 1.42)
• Capacity range: 233–11,630 kW or 186–9,280 kW
• Applications: Industrial and commercial cooling/heating across manufacturing, aerospace, textiles, electronics, power, metallurgy, pharmaceuticals, chemicals, hospitals and food processing
