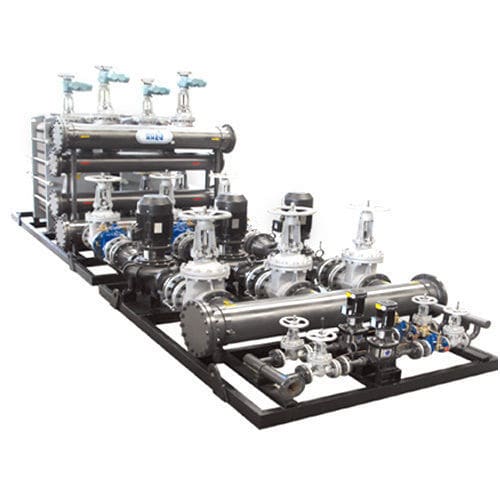

Pumping skid

loading meteringfor petrochemical applicationsfor hydrocarbons

Overview
Skid Package is a skid-mounted, pre-assembled process system delivered ready for installation on site. The unit is packaged on a structural frame with integrated piping, instrumentation and electrical interfaces to minimize on-site work.

Function
The skid can perform a variety of process functions depending on configuration: pumping, dosing, filtration, mixing, heat exchange or metering. Functional scope is defined per project and can include control and safety systems.

Capacity Range
Capacities and throughput are configurable to project requirements. Systems are scalable and can be sized for low to high flow rates depending on installed equipment and process parameters.

Driving Sources
Typical drive and power options include electric motors (fixed or variable speed), hydraulic or pneumatic drives and diesel prime movers for off-grid applications. Integrated PLC and local control panels are available.

Typical Case
Common applications include water and wastewater treatment, chemical dosing skids, oil & gas process modules, food & beverage process units and industrial utilities. Skids are designed for straightforward connection to plant services.

Technical specifications

• Commercial name: Skid Package
• Design: skid-mounted design and delivery; pre-piped and pre-wired
• Materials: stainless steel (304/316) or carbon steel with coating options
• Scope of supply: structural frame, piping, valves, instrumentation, pumps, control panel
• Testing: factory acceptance test (FAT), hydrostatic testing and functional checks before shipment
• Documentation: general arrangement drawings, P&ID, datasheets and operation manuals
• Options: ATEX/zone certification, insulation, heating, special surface treatments
• Product images: main product image plus additional gallery images available on the product page
