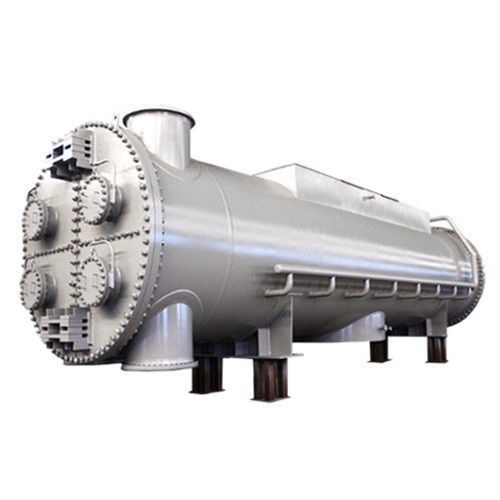

Cooled condenser

steamfor power generation

Product Overview
Condenses exhaust steam from steam turbines into water while maintaining a high vacuum on the shell side to improve turbine performance. The condenser system comprises the condenser body, steam jet, safety valve, draining water expansion tank, steam nozzle, hot well, circulating pumps and associated piping.

Information
The system cools turbine exhaust steam to recover condensate and sustain vacuum conditions required for efficient turbine operation. Typical installations are in thermal power plants and steam cycle facilities. The design integrates steam ejectors, condensate collection and circulation equipment.

Function
Condense exhaust steam from steam turbines into water.

Capacity Range
Not specified on page.

Driving Sources
Not specified on page.

Typical Case
No typical cases listed on page.

Technical specifications

• Function: Condense exhaust steam from steam turbines to water
• Feature: Maintain high vacuum on shell side
• Benefit: Increase steam turbine efficiency
• Main components: condenser body, steam jet, safety valve, draining water expansion tank, steam nozzle, hot well, circulating pumps, piping
• Application: Steam turbine exhaust condensation / power plant condensers
