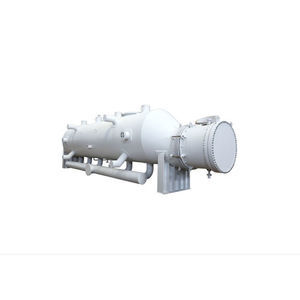

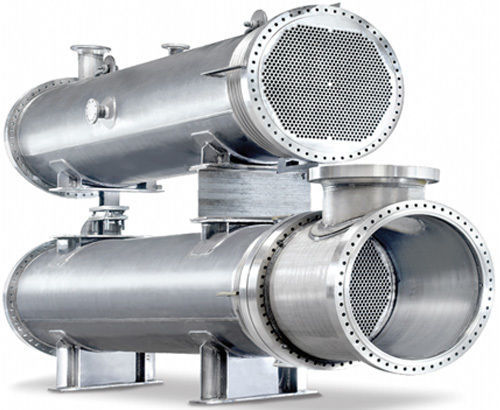

Shell and tube heat exchanger TEMA

liquid/liquidgas/liquidstainless steel

Overview
Shell-and-tube heat exchangers designed to TEMA standards, supplied for duties such as condensation, reboiling and process heating. Available in common shell-and-tube configurations to suit industrial thermal exchange requirements.

Information

• Product types: condenser, reboiler, heater and other TEMA-standard shell-and-tube exchangers.
• Function: heat transfer for condensing, reboiling and heating process streams.
• Capacity range: determined by design parameters (heat duty, flow rates, ΔT) — customizable and available on request.
• Driving sources: steam, hot oil, thermal fluids or process streams, depending on application.
• Materials and construction: typical materials include carbon steels, stainless steels, cuprous alloys, duplex and nickel alloys; construction adapted to process conditions.
• Configurations: fixed-tubesheet, U-tube, floating-head arrangements; multiple pass and baffle options.

Specifications / Technical data

• Model / Series: TEMA Heat Exchanger
• Standard: TEMA shell-and-tube design
• Typical applications: condenser, reboiler, heater
• Common options: tube materials, baffle types, pass arrangement, end connections, inspection nozzles, floating head or fixed tubesheet design
• Documentation & compliance: design drawings and material certificates provided on request; rating and tests per client specification
