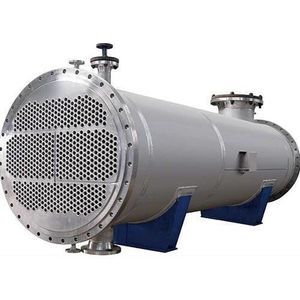

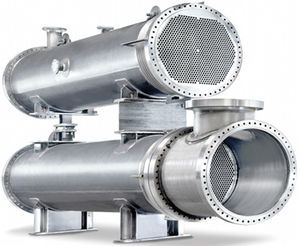

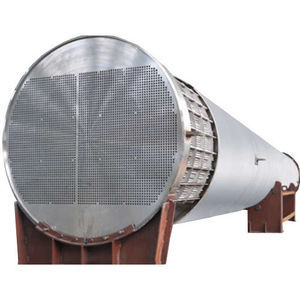

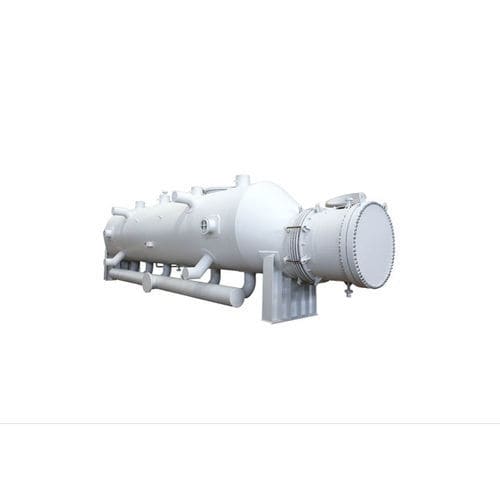

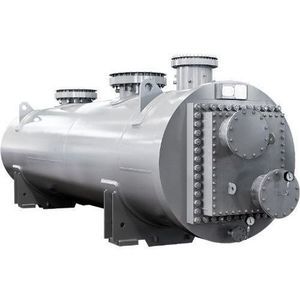

Shell and tube heat exchanger

liquid/liquidstainless steeltitanium

Product overview
Based on the Organic Rankine Cycle (ORC), this heat exchanger transfers heat from geothermal water or low-temperature waste heat to the ORC working fluid. It is supplied as core pre-heater, evaporator or condenser modules for geothermal power plants and ORC units.

Design and materials

• Available configurations: shell-and-tube, gasketed plate, brazed plate
• Materials: stainless steel, titanium and corrosion-resistant alloys for geothermal fluids
• Custom engineering to match thermal duty, pressure and fluid compatibility

Applications and integration

• Driven heat source: geothermal water or low-temperature waste heat
• Application: integration into ORC power generation units for electric power production

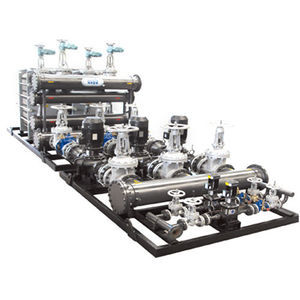

• Options for skid-mounting and standardized interface connections to simplify plant integration

Technical specifications

• Principle: Organic Rankine Cycle (ORC)
• Driven heat source: Geothermal water or low temperature waste heat
• Application: Generation of electric power
• Supplied components: Core heat exchangers (pre-heater, evaporator, condenser)

Operational advantages

• Thermal duty and sizing optimized for ORC thermodynamic conditions
• Low-fouling designs and accessible cleaning paths for geothermal fluids
• Materials and coatings selected to reduce corrosion and extend service intervals
• Customized solutions to meet site-specific temperature and flow requirements
