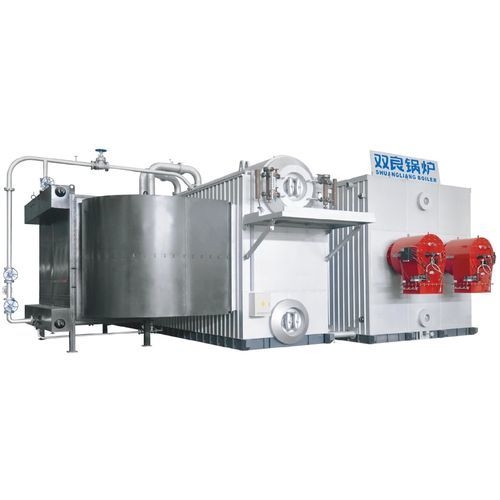

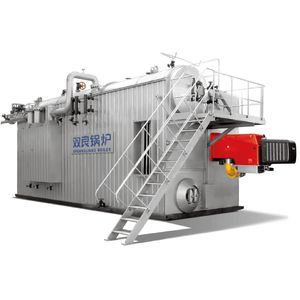

Hot water boiler SZS

steamwater tubeindustrial

Product Name
SZS Large Modular Assembly Boiler

Overview
The SZS series are water-tube boilers designed for large-capacity steam and hot-water production. The modular assembly concept enables off-site fabrication and on-site assembly, reducing installation time and facilitating transport. Available nominal capacity range is 20–85 t/h and suitable for continuous industrial operation and urban heating networks.

Key Ratings

• Nominal capacity: 20–85 t/h
• Steam boiler rated evaporation: 50–75 t/h
• Hot water boiler rated thermal power: 46–70 MW

Applications

• Urban central heating
• Aerospace industry
• Tobacco processing
• Biological and biopharmaceutical manufacturing
• Steel plants
• Coking plants
• Other industrial steam and civil heating fields

Technical specifications

• Series: SZS
• Type: Large modular assembly water-tube boiler
• Nominal capacity range: 20–85 t/h
• Steam boiler rated evaporation: 50–75 t/h
• Hot water boiler rated thermal power: 46–70 MW
• Main applications: urban central heating, aerospace, tobacco, biological manufacturing, steel, coking and other industrial steam and civil heating fields
