Module multiplexer 2016

opticaldigitalfiber optic

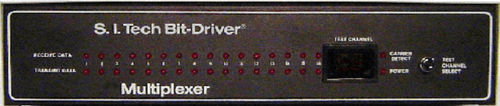

Operation Mode: - Asynchronous, simplex or full duplex. Input/Output Interface: - RS-232-C, Type D Asynchronous at 0 to 19.2 kbps. Phase Distortion: - Less than 12.5% RTS/CTS Delay Time: - 0 Number of Channels: - 16 Optical Power into a 50 Micron core Optical Fiber: - 10 µw Transmission Wavelength: - 820 nanometers (1300 nm option) Receiver Sensitivity: - 1 microwatts at less than 10-9 bit error rate Optical Connector: - ST standard (SMA optional) Operating Temperature: - 0 °C to 50 °C Input Power: - 105 to 130 VAC 60 Hz, 50 W Power transformer secondary fused and operates from 50 to 520 Hz. Detachable power supply cord Metal Enclosure: - 17.25" X 10" X 4.125" (43.8 X 25.4 X 10.5 cm) - rack mounting with ears Weight: - 12 lbs. (5.45 Kg) 230 Volt Version: - Model 2016V S.I Tech Model 2016 Bit-Driver multiplexer is ideal for in-house data transmission where you have clustered terminal situations. It delivers 16 full duplex ports capable of moving up to 19.2 Kbps in asynchronous mode, without using flow control or buffering techniques, resulting in absolute minimum throughput delay. Aggregate speed is 320 Kbps. Each port on the multiplexer is fully independent. Model 2016 is a sixteen channel communications system, providing 16 Bit-Driver links using one optical cable interface. Fiber optic cable offers complete immunity to EMI/RFI interference problems for secure data transmission in noisy environments. Status indicators show the activity of each channel and the integrity of the link. If a problem develops, you can select a digital loopback for any channel at both ends of the link without interrupting the data flow on the other fifteen channels.
