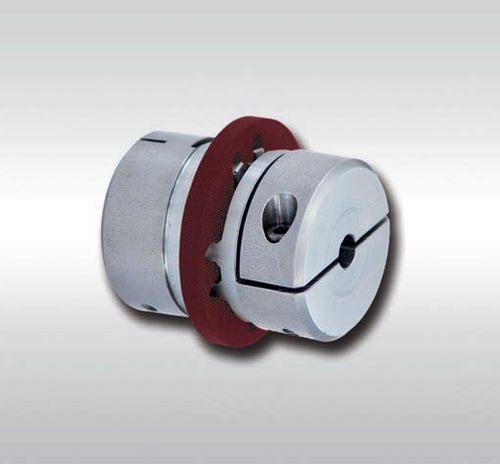

Flexible shaft coupling RDA ... ESO Type 1compactfor printing machinesfor machine tools
Add to favorites
Compare this product
Characteristics
- Type
- flexible
- Construction
- compact
- Product applications
- for printing machines, for machine tools
- Performance
- backlash-free
- Other characteristics
- misalignment correction
- Torque
2 Nm, 4 Nm, 8 Nm, 16 Nm, 32 Nm
(1.475124 ft.lb, 2.950249 ft.lb, 5.900497 ft.lb, 11.800994 ft.lb, 23.601989 ft.lb)- Rotational speed
5,300 rpm, 6,800 rpm, 8,400 rpm, 10,500 rpm, 13,000 rpm
(33,300.8821 rad.min-1, 42,725.6601 rad.min-1, 52,778.7566 rad.min-1, 65,973.4457 rad.min-1, 81,681.409 rad.min-1)
Description
Flexible Couplings
Hub with backlash free clamping connection
Features
- Compact design
- Small dimensions
- Electrical insulation
- No stick-slip action
- Large radial shaft misalignment permissible
- Torsionally rigid
- Minimal restoring forces on adjacent machine parts
- Typical applications: Printing machines, machine tools
