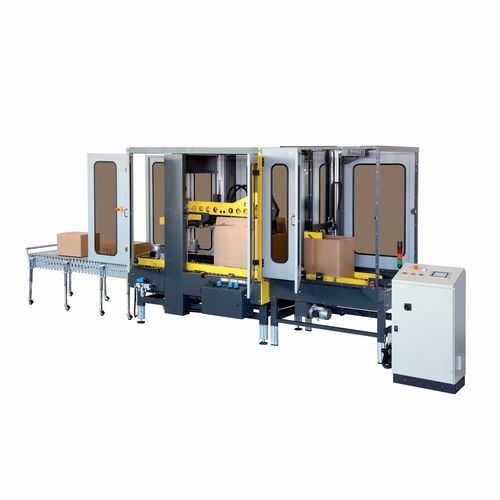

Four-flap case sealer SM44HSadhesive tapeautomatic
Add to favorites
Compare this product
Characteristics
- Flaps
- four-flap
- Sealing mode
- adhesive tape
- Other caracteristic
- automatic
- Throughput
10 p/min
Description
Product description
SM44HS is an automatic random case sealer with an integrated flap‑folding system. The machine self-adjusts to varying box sizes and closes top flaps automatically without operator intervention. The SM44HS applies two self‑adhesive tape stripes on the center line of the top and bottom faces. Installation is fast and operation is intuitive; fitted with optional casters the unit can be moved around the production area. The top-mounted folding device folds all four flaps, enabling faster packaging flow and freeing operators for filling tasks.
Key features
Options
Ideal for industries
Technical specifications
SM44HS is an automatic random case sealer with an integrated flap‑folding system. The machine self-adjusts to varying box sizes and closes top flaps automatically without operator intervention. The SM44HS applies two self‑adhesive tape stripes on the center line of the top and bottom faces. Installation is fast and operation is intuitive; fitted with optional casters the unit can be moved around the production area. The top-mounted folding device folds all four flaps, enabling faster packaging flow and freeing operators for filling tasks.
Key features
- Automatic four‑flap folder device
- Side drive belts (2 × 75 mm each)
- Belt speed: 30 m/min
- 2 motors, 0.9 kW each
- Side pressure rollers for flap control
- Electro‑pneumatic box height detection
- 2 × K11R taping units — 50 mm tape width (standard)
- Low/brake tape device
- Side safety guards with electro‑pneumatic interlocks
- Protection safety grids
- Control panel for pneumatic adjustments
- Integrated operator control panel
- Average air consumption: approx. 350 Nl/min
- Production capacity: up to 800 boxes/hour
- AS26HS indexing unit with box holding device
- Standard box range: L 200–600 mm, W 160–500 mm, H 140–500 mm
Options
- 2 × K12R taping units — 75 mm tape width
- Polycarbonate safety panels
- Higher machine legs (AS80)
- Casters for mobility (AS77)
- Roller conveyor (RG)
- Extendable conveyors (GTL / GTR)
Ideal for industries
- Wine & Spirits
- Household, Consumer & Personal Care
- Food & Dairy
- Pharmaceutical industry
- Logistics
- E‑commerce
Technical specifications
- Model: SM44HS
- Type: Automatic random case sealer with flap folder
- Taping units: standard 2 × K11R (50 mm); optional 2 × K12R (75 mm)
- Drive belts: 2 side belts, 75 mm each
- Belt speed: 30 m/min
- Motors: 2 × 0.9 kW
- Air consumption: approx. 350 Nl/min
- Production capacity: up to 800 boxes/hour
- Indexing unit: AS26HS with box holding device
- Standard box range: L 200–600 mm, W 160–500 mm, H 140–500 mm (other configurations available)
- Safety: side protections with electro‑pneumatic disconnection switches and protection grids
- Additional functions: low/brake tape device, side pressure rollers, electro‑pneumatic height detection
