Hot-melt glue carton sealer HM11 series

automatic

Product overview

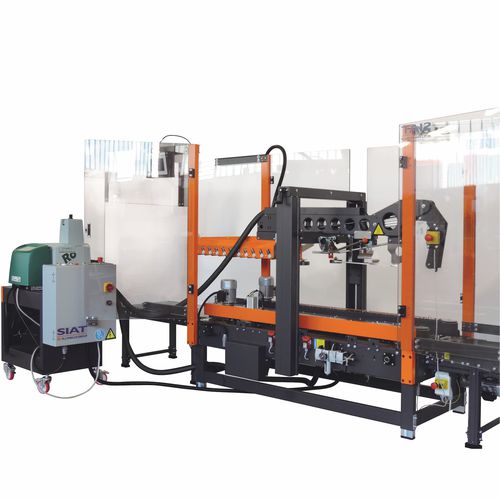

HM11 is a range of automatic hot-melt case sealers designed for continuous packaging lines. The machine seals cartons (with bottom flaps already closed) by applying hot-melt adhesive: boxes are fed by side drive belts; injectors apply four glue strips; compression rollers press flaps to ensure adhesion. The system is largely automatic and requires operator intervention only for glue feeding and parameter adjustments. Safety panels prevent access to moving or hot parts.

Advantages

• Automatic top-flaps-folder device
• 12 different application programs
• Ready for integration into automatic lines
• Easy to use

Key features

• HM11-TB: Automatic top-flaps-folder device; manual adjustment for different box sizes by handles; side drive belts (2 x 75 mm width each); drive belts speed 21 m/min; 2 motors 0.18 kW each; top & bottom glue applicator dispenses glue on top and bottom flaps before top-flaps folding; ROBATECH® hot-melt glue applicator on external carriage with 5 kg tank, tube and glue dispenser; dispenser adjusts glue temperature and volume; storage of sealing programs; timer for pre-heating adjustment; box dimensions adjustment; side safety protections with switches to disconnect electro-pneumatic circuits; control panel with main switch, start/stop, emergency stop and photocells to verify glued boxes; output up to 1000 bph; adjustable working height 500 – 750 mm; OMRON PLC; Box dimensions: Min L 200 x W 180 x H 150 mm; Max L 450 x W 450 x H 600 mm
• HM11-T: Automatic top-flaps-folder device; manual adjustment for different box sizes by handles; side drive belts (2 x 75 mm width each); drive belts speed 21 m/min; 2 motors 0.18 kW each; top glue applicator dispenses glue on top flaps before top-flaps folding; ROBATECH® hot-melt glue applicator on external carriage with 5 kg tank, tube and glue dispenser; dispenser adjusts glue temperature and volume; storage of sealing programs; timer for pre-heating adjustment; box dimensions adjustment; side safety protections with switches to disconnect electro-pneumatic circuits; control panel with main switch, start/stop, emergency stop and photocells to verify glued boxes; output up to 1200 bph; adjustable working height 500 – 750 mm; OMRON PLC; Box dimensions: Min L 200 x W 180 x H 150 mm; Max L 600 x W 500 x H 600 mm

Options

• Other PLC brands on request
• Other hot melt dispenser on request (PREO, NORDSON and other brands)
• Higher legs (AS80)
• Casters (AS77)
• Roller conveyor (RG)
• Extendable conveyor (GTL-GTR)

Ideal for these industries

• WINE & SPIRITS
• HOUSEHOLD, CONSUMER & PERSONAL CARE
• FOOD & DAIRY
• PHARMACEUTICAL INDUSTRY

Technical specifications

• Technology: Automatic Hot-Melt case sealer (hot-melt glue application)
• Series / model: HM11 (variants: HM11-TB, HM11-T)
• Drive: Side drive belts (2 x 75 mm)
• Drive belts speed: 21 m/min
• Motors: 2 x 0.18 kW
• Glue system: ROBATECH® hot-melt glue applicator on external carriage with 5 kg tank; dispenser adjusts temperature and volume (other brands available on request)
• Glue application: HM11-TB top & bottom glue applicator; HM11-T top glue applicator
• Sealing programs: storage of sealing programs; timer for pre-heating adjustment
• Control: OMRON PLC; control panel with main switch, start/stop, emergency stop and photocells
• Safety: Side safety protections with switches to disconnect electro-pneumatic circuits; safety panels to prevent contact with moving/hot parts
• Throughput: up to 1000 bph (HM11-TB); up to 1200 bph (HM11-T)
• Adjustable working height: 500 – 750 mm
• Box sizes HM11-TB: Min L 200 x W 180 x H 150 mm; Max L 450 x W 450 x H 600 mm
• Box sizes HM11-T: Min L 200 x W 180 x H 150 mm; Max L 600 x W 500 x H 600 mm
• Additional accessories: higher legs, casters, roller conveyor, extendable conveyor
• Integration: Ready for integration into automatic lines
