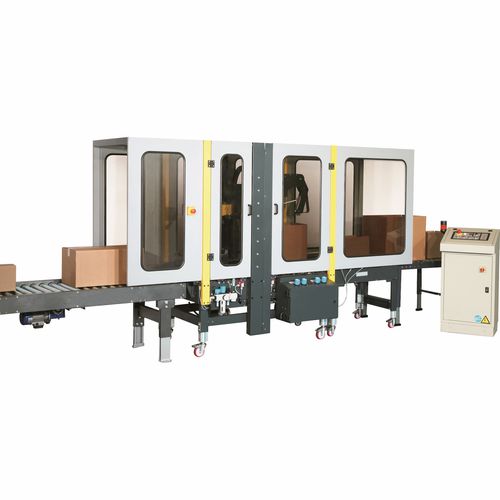

Four-flap case sealer SM44HD

adhesive tapeautomatic

Description
SM44HD is an automatic random case sealer designed to adjust automatically to varying box sizes and to seal boxes without operator intervention. The machine folds the top flaps and applies two self-adhesive tape stripes on the upper and lower middle lines. SM44HD is compact, easy to install and can be moved on optional casters. The top taping head includes an integrated four-flap folding system that frees the operator's hands for loading or other tasks.

Key features

• Automatic four-flap folder integrated in taping head
• Side drive belts (2 × 75 mm each)
• Conveyor speed: 30 m/min
• 2 motors, 0.18 kW each
• Side pressure rollers for flap control
• Pneumatic box-height detection
• 2 × K11R taping units (50 mm) standard
• Low/brake tape device
• Side safety guards with electro-pneumatic interlocks
• Safety protection grids
• Integrated control panel and pneumatic adjustment panel
• Air pressure regulator
• Average air consumption: approx. 180 Nl/min
• Production up to 450 boxes/hour
• AS24HD centering unit with box holder
• Standard box sizes: Min L 200 mm × W 160 mm × H 140 mm; Max L 600 mm × W 500 mm × H 500 mm

Options

• 2 × K12R taping units (75 mm)
• Polycarbonate safety panels
• Higher machine legs (AS80)
• Casters (AS77)
• Roller conveyor (RG)
• Extendable conveyor (GTL / GTR)

Ideal for industries

• Wine & Spirits
• Household, Consumer & Personal Care
• Food & Dairy
• Pharmaceutical industry
• E-commerce and fulfilment

Technical specifications

• Machine type: Automatic random case sealer with self-adjustment to box sizes
• Taping: 2 self-adhesive tape stripes (upper and lower middle line)
• Taping units: Standard 2 × K11R (50 mm); optional 2 × K12R (75 mm)
• Drive belts: 2 × 75 mm width
• Drive speed: 30 m/min
• Motors: 2 × 0.18 kW
• Air consumption: approx. 180 Nl/min
• Production capacity: up to 450 boxes/hour
• Box dimensions (standard): Min L 200 mm, W 160 mm, H 140 mm; Max L 600 mm, W 500 mm, H 500 mm
• Integrated auto four-flap folding device
• Side pressure rollers for flap control
• Pneumatic height detector
• Low/brake tape device
• Safety: side protections with electro-pneumatic disconnection and protection grids
• Controls: integrated control panel; pneumatic adjustment panel; air pressure regulator
• Optional accessories: AS24HD centering unit, casters, roller/extendable conveyors, polycarbonate panels, higher legs
