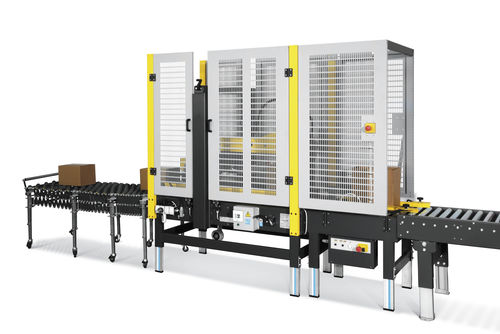

Automatic case sealer SM11 Series

double-flapadhesive tape

Automatic case sealer SM11 model is an automatic “Fixed Format” case sealer: it means that all the adjustments needed to use the machine in a correct way are done manually and for this reason it is used for long runs with same box dimensions. The machine applies automatically two self-adhesive tape stripes on the upper and lower boxes middle line. The SM11 adjustment and use are intuitive, simple and fast. Advantages • High productivity • Fully automatic Key features Automatic four-flaps-folder device Manual adjustment on different box sizes (width, height, length) by handles. Time required 1′ Side drive belts (2 x 75 mm width each) Drive belts speed 21 m/min. 2 motors kW 0,13 each Side pressure rollers to keep top flaps one close to the other Adjustable working height 500 – 750 mm. 2 x K11R taping unit – 50 mm width 2 x K12R taping unit – 75 mm width only for SM116 model Side safety protections connected to electro-pneumatic disconnection switches SM11 Box dimensions Min. L 200 mm W 150 mm H 100 mm Max L 600 mm W 500 mm H 600 mm SM11-I Machines in stainless steel SA11 Machines with switch to control the movement of the top taping head frame by pneumatic pistons instead of handles & screws SM11/4 Box dimensions Min. L 200 mm W 105 mm H 90 mm Max. L 600 mm W 500 mm H 600 mm SM116 Box dimensions Min. L 300 mm W 150 mm H 180 mm Max. L 900 mm W 650 mm H 700 mm
