Rectangular luminescence sensor LUT series

LEDblue lightdigital

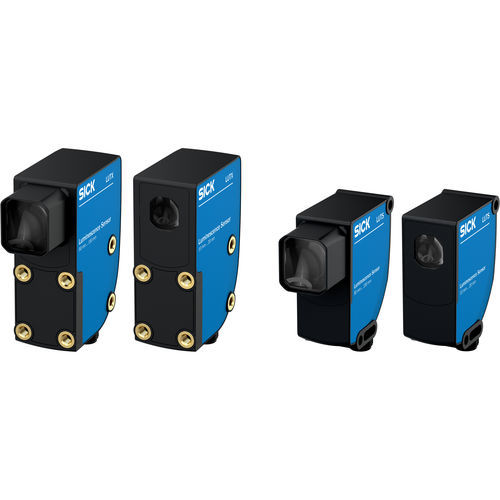

Luminescence sensors with intensity display and intuitive operation LUTS/LUTX luminescence sensors from SICK reliably detect visible and non-visible luminescent marks. Variants with UV or blue emitted light are available, each in three sensing distances and light spot geometries. LUTS is suitable for tight installation situations, while the larger LUTX offers more mounting flexibility. The integrated display shows intensity values, thereby facilitating sensor adjustment and process monitoring. With a switching frequency of up to 16 kHz and a scalable digital output, the sensors are ideal for applications with high speeds or low luminescent marks. Additional diagnostic functions can be set using IO-Link. LUTS/LUTX are used in the packaging industry, pharmaceutical industry and wood processing, among others. Benefits Provides a quick process overview and precise sensor adjustment Variants that are tailored to the installation situation and marking geometry make installation easier Reliable detection of luminescent markings Suitable LEDs for specific applications: The blue LED for excitation of red luminophores, UV LED for blue, green and yellow marks. High process reliability, even with low luminescence intensity Additional diagnostics and visualization options as well as quick and easy format changes thanks to the IO-Link function
