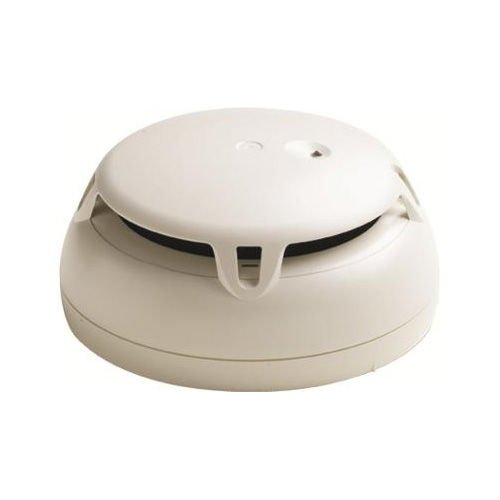

Optical smoke detector FDOOT221

liquidelectronictwo-sensor

Product description
Designed for early detection of flaming and smouldering fires caused by liquid and solid combustibles. Detects both dark and light smoke particles using forward and backward scattered-light optical sensors combined with two heat sensors to increase immunity to deceptive phenomena. Opto-electronic sampling chamber suppresses ambient light. Signal processing uses neural detection algorithms (DA). The base must be ordered separately. Available in different colours.

Identification

• Product No.: FDOOT221
• Stock No.: S54310-F20-A1
• GTIN / EAN: 4047625073367

Accessories (selection)

• FDB291 — Base attachment
• FDBZ291 — Designation plate
• FDB293 — Base attachment humid
• FDBH291 — Detector heating incl. 2 micro terminals
• M20X1.5MSVER — Screwed cable gland M20 x 1.5
• FDZ291 — Detector dust cap
• FDBZ293 — Detector locking device
• FDBZ294 — EMC protective cage
• DBZ1190-AA — Micro terminal 0,5 mm2, 4-pole
• DBZ1194 — Protective cage
• DBZ1193A — Detector designation plate
• DBZ1190-AB — Connection terminal 2,5 mm2, 3-pole
• FDBZ295 — Sealing element
• FDB299 — Base adaptor Sinteso (AlgoRex-C)
• FDB295 — Base attachment wet

Technical specifications

• Standards: EN 54-7, EN 54-17, EN 54-29, CEA 4021
• Protection category: IP43; IP44 with base attachment
• Operating voltage: DC 12…33 V
• Operating current: 0.230 mA
• Operating temperature: -10…60 °C
• Storage temperature: -30…+75 °C
• Quiescent current: 200...280 μA
• External alarm indicator: 2 without sounder base; 1 with sounder base
• System compatibility: FDnet -> FS20, AlgoRex, SIGMASYS
• Communication protocol: FDnet
• Relative humidity: ≤95 %
• Dimensions (Ø x H): 100 x 46 mm
• Color: Pure white, ~RAL 9010
