Optical smoke detector OOH740

thermalmulti-sensorfor fire safety applications

Product description
Multi-sensor smoke detector OOH740 with ASA Technology for reliable detection of flaming and smoldering fires. Operates on the scattered-light principle with two optical sensors (forward and backward scattering). The opto-electronic sampling chamber suppresses stray light while detecting both dark and light smoke particles. Two additional heat sensors increase immunity to nuisance sources. Collective mode offers three parameter sets: Standard Plus (PS1), Suppression (PS5) and High Sensitive Fast (PS9). The base must be ordered separately.

Scope of delivery

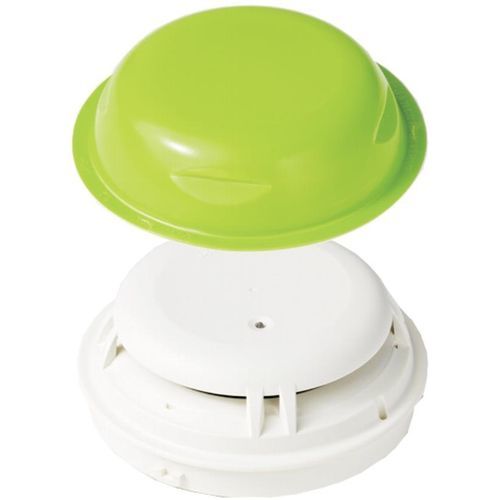

Detector and dust cap

Identification
Product No.: OOH740
Stock No.: S54320-F7-A3
GTIN Number: 4047625015206

Documents (selection shown on product page)
Datasheet and applicable declarations/certificates (see product documentation on the page).

Accessories / Notes
Base must be ordered separately. Collective mode parameter sets: Standard Plus (PS1), Suppression (PS5), High Sensitive Fast (PS9).

Caractéristiques / spécifications techniques

• Standard: CEA 4021, EN 54-5, EN 54-7, EN 54-17
• Protection category: IP40; IP42 with detector base seal
• Operating voltage: DC 12…33 V
• Operating current: 0.25 mA
• Operating temperature: -25…55 °C
• Storage temperature: -30…+70 °C
• Quiescent current: ~170...250 μA
• Ext. alarm indicator: 2
• System compatibility: C-NET -> FS720
• Communication protocol: C-NET, Collective/Conventional
• Relative humidity: ≤95 % rel.
• Dimensions (Ø x H): 106 x 43 mm
• Color: Pure white, ~RAL 9010
