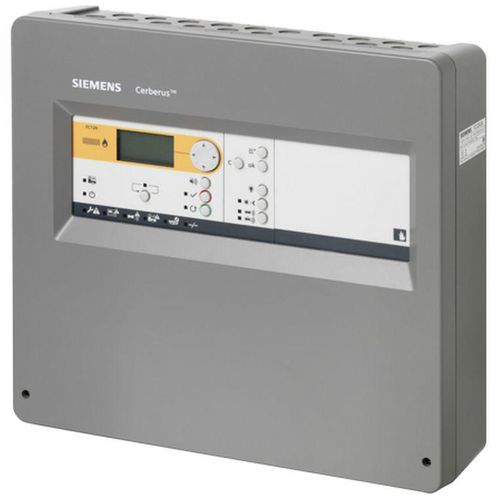

Fire detection and alarm unit FC121-ZA

Product description The FC121-ZA is a conventional fire control panel with an integrated operator unit for 2 zones. Designed for simple operation while offering extensive configuration options and flexibility. Ideally suited for small installations such as schools, shops and hotels. Expansions and accessories must be ordered separately.

Product numbers

• Product No.: FC121-ZA
• Stock No.: S54400-C131-A1
• GTIN Number: 4047625040253

Notes

• Conventional fire control panel with integrated operating unit for 2 zones.
• Designed for simple operation and high flexibility via a comprehensive feature list.
• Suitable for small applications such as schools, shops and hotels.
• Expansions and accessories ordered separately.

Technical specifications

• Mains voltage: AC 196...253 V
• Operating voltage: DC 21…28.6 V
• Power supply: 25 W
• Operating current: 900 mA
• Bypass time for emergency power supply: 72 h
• Battery capacity: 2x 12 V / 4 or 7 Ah
• Operating temperature: -5…40 °C
• Relay outputs: 1x dialer fault
• Monitored output: 1x sounder line, 1x dialer fire
• Programmable inputs: 2
• Plug-in position: 1
• Zones: 2
• Conventional devices per zone: Max. 32
• Relative humidity: ≤95 % rel. (no condensation)
• Storage temperature: -20…+60 °C
• Protection category: IP30
• Color housing/cover: Gray, ~RAL 000 50 00
• Dimensions (W x H x D): 310 x 360 x 85 mm
• Weight (net): 2.79 kg
