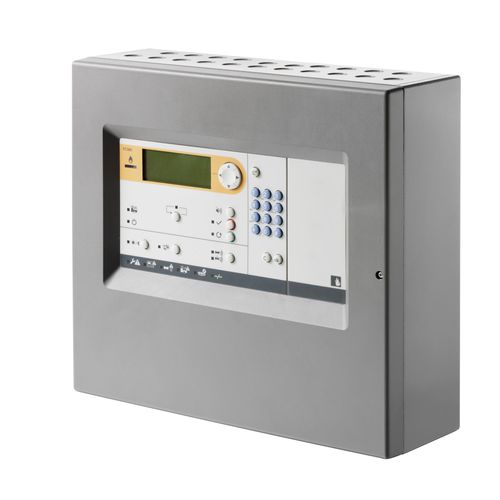

Fire alarm control panel FC361 series

programmableaddressableIP30

Product description
The FC361.. is an addressable, non-networkable fire control panel with a single detection loop supporting up to 126 C‑NET addresses. It offers automatic detection and read‑in (auto‑configuration) of C‑NET devices, an integrated Panel Configurator for quick PC/Laptop configuration without additional software, and event logging for up to 2000 events. Automatic daylight saving time switching is included. The panel is suited to smaller installations such as workshops, small hotels, schools and retail premises. Expansions and accessories must be ordered separately.

Key features

• Auto‑configuring addressable panel for simplified commissioning
• Compatible detectors: Cerberus™ PRO FD720 (C‑NET)
• Supports up to 126 addresses on 1 loop (or 2 stub lines)
• Programmable inputs/outputs: 4
• Relay outputs for fire alarm, fault and fire control
• Integrated Panel Configurator (no extra software required)
• Event memory: up to 2000 entries

Technical specifications

• Detector compatibility: Cerberus™ PRO FD720 (C‑NET)
• Number of addresses: 126
• Number of detector lines: 1 loop or 2 stub lines
• Programmable input/output: 4
• Relay outputs: 1 x RT fire alarm, 1 x RT fault, 1 x fire control
• Mains voltage: AC 97...127 V / AC 196...253 V
• Operating voltage: DC 20.5...28.6 V
• Operating current: Max. 2.5 A
• Power supply rating: 70 W
• Emergency power bypass time: 72 h
• Battery capacity (typical): 2 x 12 V, 7 Ah
• Plug‑in position: 1 (serial interface RS232)
• Operating temperature: -5…+40 °C
• Storage temperature: -20…+60 °C
• Relative humidity: ≤95% rel. (no condensation)
• Protection category: IP30
• Housing colour: ~RAL 7035, Light gray
• Cabinet dimensions (W x H x D): 430 x 398 x 80 mm (without cover cap); 430 x 398 x 108 mm (with cover cap)

Ordering & compatibility
Expandable via optional modules and accessories. Compatible with Cerberus™ PRO FD720 detectors. Batteries, expansion modules and specific cabinet variants are ordered separately; consult product documentation for ordering codes and installation guidelines.
