Network repeater FT2010-A1

communication24V DC

Description

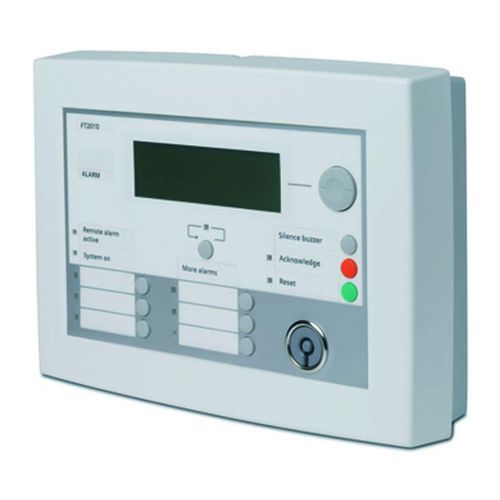

Small floor repeater terminal providing operation and plain-text display for addressed Sinteso FS20 and Cerberus PRO FS720 fire detection systems. Includes a large backlit plain-text display (6 lines × 40 characters), navigation keys, acknowledgement and reset functions. Sections and zones shown and operated via the terminal are configurable to enable precise localisation of events. Power via FDnet/C‑NET loop or optional separate 24 V supply; device can be used in loops or stub lines. Nordic key switch provides restricted operating access.

Identifiers

• Product No.: FT2010-A1
• Stock No.: A5Q00014104
• GTIN (EAN): 4047625015145

Features

• Backlit plain-text display: 6 lines × 40 characters
• Configurable sections and zones for event localisation
• Displays alarms, pre-alarms, technical messages, faults and isolations
• Navigation keys to scroll lists; acknowledgement and reset
• Event text identical to fire control panel or fire terminal
• Nordic key switch for operating access
• Power via FDnet/C‑NET or separate 24 V external supply
• Operable in loops or stub lines

Technical specifications

• Operating voltage: DC 12…32 V
• Supply voltage: DC 20…30 V; AC 15…18 V (external input)
• Power supply: Loop powered or external
• Current consumption: 5 mA @ 24 V (quiescent, LCD off); 45 mA @ 24 V (max., LCD on)
• Cable capacity: 0.8…1.5 mm²
• Communication protocol: FDnet/C‑NET
• System compatibility: FDnet → FS20; C‑NET → FS720
• Protection category: IP30
• Operating temperature: -8…42 °C
• Storage temperature: -20…+60 °C
• Relative humidity: ≤95 % rel. (no condensation)
• Color: Light grey, ~RAL 7035
• Dimensions (W × H × D): 282 × 207 × 79 mm
• Number of addresses: 1
• Standards: EN 54-17, EN 54-18

Documentation & certificates

• Operating instructions, mounting instruction and data sheet available
• VdS, LPCB and EN/UKCA certificates as listed for FT2010 series
• Environmental Product Declaration available

Installation and operation

• Wall-mountable panel; follow mounting instructions for secure installation
• Connect to FDnet/C‑NET loop or to external 24 V supply as required; allow access for Nordic key switch
