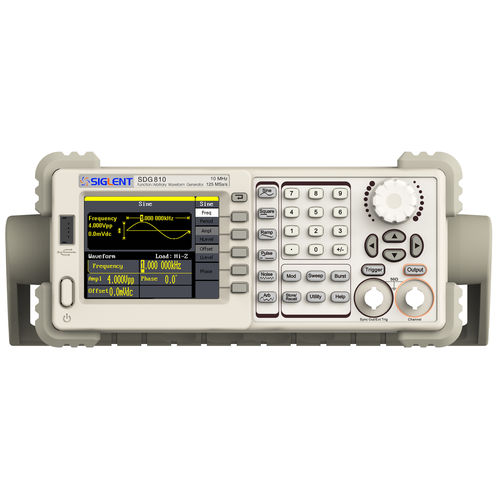

Function generator 5 - 30 MHZ | SDG800 SERIES
arbitrary waveformdual-channeldigital

function generator
function generator
function generator
function generator
function generator
Add to favorites
Compare this product


Characteristics

Type
function, arbitrary waveform
Other characteristics
dual-channel, digital

Description

Overview: The SDG800 series function/arbitrary waveform generator family output frequencies up to 5MHz (pulse), 10MHz (square), 30MHz (sine) and have a sampling rate of 125MSa/s. They use the SIGLENT EasyPulse technology which produces low jitter, fast rising/falling edges without being affected by frequency, even at low duty cycle settings, allowing the user a wide range of pulse widths and transition times. This results in a much more versatile generator than other similar DDS designs. Main Features: ◆ Advanced DDS technology,125MSa/s sampling rate, 14bit vertical resolution ◆ Single channel output, 5 kinds of standard waveforms, built-in 46 kinds of arbitrary waveforms (including DC) ◆ Complete modulation functions: AM, DSB-AM,FM, PM, FSK, ASK, PWM, linear/logarithmic sweep and burst ◆ Innovative EasyPulse technology, can output pulse of low jitter, quick rising/falling edge ◆ Standard interfaces: USB Device, USB Host, support U-Disk storage and software ◆ Provide 10 nonvolatile storage spaces for users arbitrary waveforms ◆ Be capable of seamlessly connected to SIGLENT Digital Storage Oscilloscope ◆ Configurable with powerful arbitrary waveform editing software EasyWave Application: ◆ Simulate sensor ◆ Simulate environmental signal ◆ Circuit function test ◆ IC chip test ◆ Research and education
