Noise generator SDG7000A series

pulsearbitrary waveformdual-channel

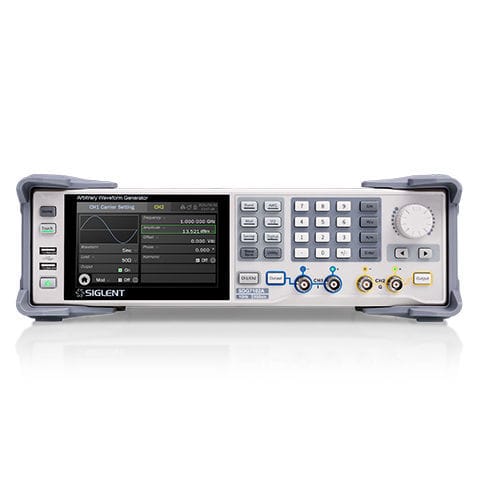

SIGLENT’s SDG7000A is a family of dual-channel Arbitrary Waveform Generators that feature up to 1 GHz bandwidth, a maximum sample rate of 5 GSa/s, and 14-bit vertical resolution. It can generate arbitrary waveforms point by point with a maximum 2.5 GSa/s sample rate and vector signals with a maximum of 500 MSa/s. It also has the ability to generate a variety of signals such as continuous wave, Pulse, Noise, PRBS patterns, and a 16-bit digital bus. It supports the generation of complex signals such as modulation, sweeping, bursting, and dual-channel copying/coupling/tracking and superposition. The outputs are user selectable for differential or single-ended connections and support a maximum output range of ± 24 V. The instrument can ensure a large amplitude under high-frequency which eliminates an external power amplifier in some applications and addresses a wider range of requirements. Key Features •Generates low jitter pulses with 1 ns minimum pulse •width and 500 ps minimum edge •Up to 1 GHz bandwidth and White Gaussian Noise with adjustable bandwidth •PRBS up to 312.5 Mbps •LVTTL and LVDS Digital bus options for digital signal sourcing up to 1 Gbps •Includes popular analog/digital modulation types, sweeping and bursting functions •Enhanced dual-channel operation functions: inter-channel tracking, coupling, and copying •Dual-channel superposition function •Mutual modulation between channels •The 24 Vpp analog output is superimposed with ± 12 Vdc offset to provide a maximum output range of ± 24 V (48 V) •High precision Frequency Counter
