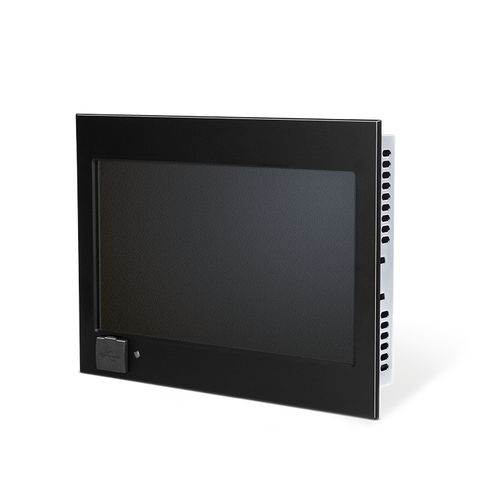

Resistive touch screen operating panel ETT 731
panel-mount800 x 400TFT LCD

Resistive touch screen operating panel - ETT 731 - SIGMATEK GmbH & Co KG - panel-mount / 800 x 400 / TFT LCD
Resistive touch screen operating panel - ETT 731 - SIGMATEK GmbH & Co KG - panel-mount / 800 x 400 / TFT LCD
Resistive touch screen operating panel - ETT 731 - SIGMATEK GmbH & Co KG - panel-mount / 800 x 400 / TFT LCD - image - 2
Add to favorites
Compare this product

Characteristics

Interface
resistive touch screen
Mounting
panel-mount
Resolution
800 x 400
Screen type
TFT LCD
Protection level
IP54
Connectivity
Ethernet, RJ45, USB 2.0, RS-232
Other characteristics
widescreen
Applications
for control, visualization
Screen size

7 in

Description

Built-in panel for visualization, operation and monitoring High-Performance EDGE2 Technology processor OPC UA communication Several standard integrated interfaces Performance Data Processor - EDGE2 Technology Processor core - 1 Internal program and data memory - 256 MB Internal remnant data memory - 256 kB SRAM (battery buffered) Internal storage device - 512 MB NAND Flash Supply voltage - +24 V DC (+18-30 V DC) Display Ratio - 5:3 Mechanical Features Dimensions - 180 x 135 x 40.9 mm (W x H x D) Material - front plate: 3 mm aluminum, black anodized Weight - circa 600 g Standardization/­certification - UL 61010-2-201
