Ring magnetic strip MBR320
flexible

ring magnetic strip
ring magnetic strip
ring magnetic strip
Add to favorites
Compare this product


Characteristics

Configuration
ring
Other characteristics
flexible

Description

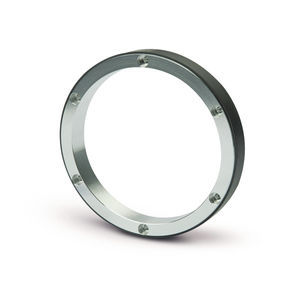

Magnetic band ring MBR320 Incremental, flexible magnetic band ring for self-assembly, pole length 3.2 mm Profile MBR320: With reference point as an option Easy mounting on self-made carrier Mechanical data Feature - Technical data - Additional information Band width - 9.7 mm - - - - - - Band thickness - 1 mm - - - without cover strip or adhesive carrier tape - - - Mounting type - adhesive connection - - - recommended two-component adhesive: Uhu Plus 300 Endfest - - - ■ Table of dimensions Pôles - 36 - 50 - 100 - - 150 - 180 - 250 Diameter d [mm] - 35.7 ±0.03 - 49 ±0.03 - 100.9 ±0.03 - - 151.8 ±0.03 - 182.4 ±0.03 - 253.7 ±0.03 Diameter with MBR320 [mm] - 37.7 ±0.03 - 51 ±0.03 - 102.9 ±0.03 - - 153.8 ±0.03 - 184.4 ±0.03 - 255.7 ±0.03 Circumference U with MBR320 [mm] - 118.44 - 160.22 - 323.27 - - 483.18 - 579.31 - 803.31 Speed n [min-1] - 212710 - 29370 - 24640 - - 23100 - 22590 - 21860 System data Feature - Technical data - - - Additional information - - - Pôle length - 3.2 mm - - - - - - Measuring range - 360= - - - - - - ■ Pulses/revolution Pôle number - 36 - 50 - 100 - - 150 - 180 - 250 Sensor scaling 20 - 720 - 1000 - 2000 - - 3000 - 3600 - 5000 factor 16 - 576 - 800 - 1600 - - 2400 - 2880 - 4000 10 - 360 - 500 - 1000 - - 1500 - 1800 - 2500 8 - 288 - 400 - 800 - - 1200 - 1440 - 2000 5 - 180 - 250 - 500 - - 750 - 900 - 1250 4 - 144 - 200 - 400 - - 600 - 720 - 1000 1 - 36 - 50 - 100 - - 150 - 180 - 250 The table applies to the combination of MBR320 with MSK320
