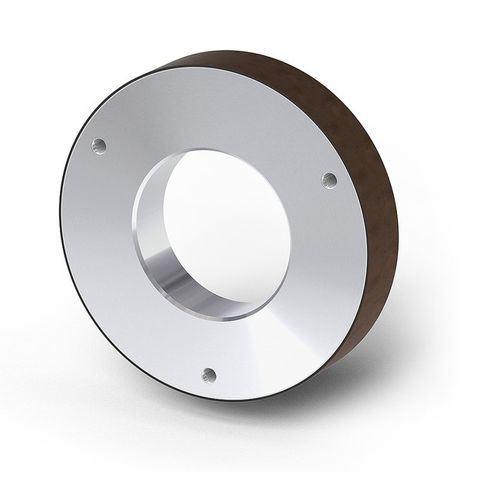

Ring magnet MRAC506

Magnetic ring MRAC506 absolute, high-resolution position detection for rotative application Profile MRAC506: Easy hollow-shaft mounting external diameter 100.66 mm Mechanical data Feature - Technical data - Additional information Flange - aluminum - Speed - £6000 rpm - System data - - Feature - Technical data - Additional information Pôle length - 5 mm - Pôle number64 System accuracy - ±0.1 = (±200 ") - at Ty = 20 =C, with run-out error of 50 pm Measuring range - 360= - Ambient conditions - - Feature - Technical data - Additional information Ambient température - -20 ... 80 =C - Storage température - -20... 80 :C - Relative humidity - 100% - condensation admissible
