Ring magnetic strip MBR500
flexible

ring magnetic strip
ring magnetic strip
ring magnetic strip
Add to favorites
Compare this product


Characteristics

Configuration
ring
Other characteristics
flexible

Description

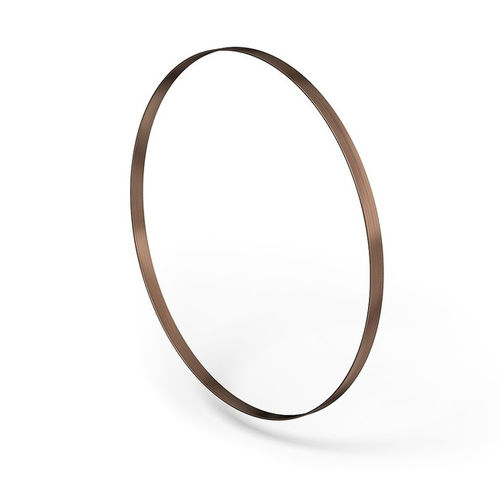

Magnetic band ring MBR500 Incremental, flexible magnetic band ring for self-assembly, pole length 5 mm Profile MBR500: With reference point as an option Easy mounting on self-made carrier Mechanical data Feature - Technical data - Additional information Band width - 9.7 mm - Band thickness - 1 mm - without cover strip or adhesive carrier tape Mounting type - adhesive connection - recommended two-component adhesive: Uhu Plus 300 Endfest ■ Table of dimensions Pôles - 36 - 50 - 64 - 96 - 160 - 188 Diameter d [mm] - 57.5 ±0.03 - 79.8 ±0.03 - 102 ±0.03 - 153 ±0.03 - 254.8 ±0.03 - 299.4 ±0.03 Diameter with MBR500 [mm] - 59.5 ±0.03 - 81.8 ±0.03 - 104 ±0.03 - 155 ±0.03 - 256.8 ±0.03 - 301.4 ±0.03 Circumference U with MBR500 [mm] - 186.93 - 256.98 - 326.73 - 486.95 - 806.76 - 946.88 Speed n [min-1] - variable - variable - variable - variable - variable - variable ■ Speed Maximum speeds are calculated in relation to circumferential speed, with the circumference of the magnetic ring being décisive. The circumferential speed of the MSK5000 sensor is variable; it results fromthe sélection of puise interval and scaling factor (see table MSK5000). Speed is calculated according to the formula: Formula: n v «60000 U Example: n 6 x 60000 320 -1125 l«9*nd: n (min1) speed v(m/s) circurafe» entrai speed 60000 extension facto» (60 s/min x 1000 mm/m) U (mm) circumference System data - - Feature - Technical data - Additional information Pôle length - 5 mm - Measuring range - 360= - ■ Pulses/revolution Pôle number - - 36 - 50 - 64 - 96 - 160 - 188 Sensor scaling - 1250 - 45000 - 62500 - 80000 - 120000 - 200000 - 235000 factor - 250 - 9000 - 12500 - 16000 - 24000 - 40000 - 47000 - 125 - 4500 - 6250 - 8000 - 12000 - 20000 - 23500 - 50 - 1800 - 2500 - 3200 - 4800 - 8000 - 9400 - 25 - 900 - 1250 - 1600 - 2400 - 4000 - 4700
