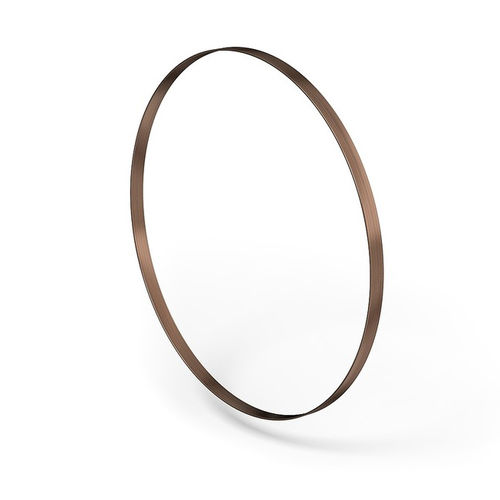

Ring magnetic strip MBR100

flexible

Magnetic band ring MBR100 Incremental, flexible magnetic tape ring for self-assembly, pole length 1 mm Profile MBR100: With reference point as an option Easy mounting on self-made carrier Mechanical data Feature - Technical data - - Additional information - - Band width - 9.7 mm - - - - Band thickness - 1 mm - - without cover strip or adhesive carrier tape - - Mounting type - adhesive connection - - recommended two-component adhesive: Uhu Plus 300 Endfest - - ■ Table of dimensions Pôles - 460 - 540 - - 720 - 1120 Diameter d [mm] - 144.7 ±0.03 - 170.1 ±0.03 - - 277.4 ±0.03 - 354.74 ±0.03 Diameter with MBR100 [mm] - 146.7 ±0.03 - 172.1 ±0.03 - - 279.4 ±0.03 - 356.74 ±0.03 Circumference U with MBR100 [mm] - 460.87 - 540.67 - - 720.68 - 1120.73 Speed n [mirr1] - 22600 - 22210 - - 21660 - 21070 System data Feature - Technical data - - Additional information - - Pôle length - 1 mm - - - - Measuring range - 360= - - - - ■ Periods/revolution - - - - - Pôle number Period - 460 540 720 1120 460 540 720 1120 - - - - The table applies to the combination of MBR100 with LE100/1 - - - - - Ambient conditions Feature - Technical data - - Additional information - - Ambient température - -20 ... 70 X - - - - Storage température - -20 ... 70 =C - - - - Relative humidity - 100% - - condensation admissible
