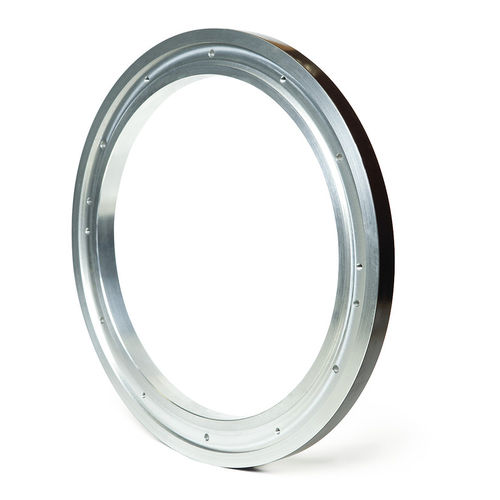

Ring magnet MRAC501

ring magnet
ring magnet
ring magnet
Add to favorites
Compare this product


Characteristics

Configuration
ring

Description

Magnetic ring MRAC501 Absolute, high-resolution position acquisition for rotative applications Profile MRAC501: External diameter 406.4 mm, 256 poles (code size 8 bits) Hollow shaft diameter ≤320 mm Speed absolute ≤234 min-1 Speed incremental ≤1172 min-1 Mechanical data Feature - Technical data - Additional information Flange - aluminum - Speed - £234 rpm - absolute - £1172 rpm - incrémental, mechanical System data - - Feature - Technical data - Additional information Pôle length - 5 mm - System accuracy - ±0.06= - atTu = 20=C Measuring range - 360= - Ambient conditions - - Feature - Technical data - Additional information Ambient température - -40... 80 =C - Storage température - -40... 80 =C - Relative humidity - 100% - condensation admissible
