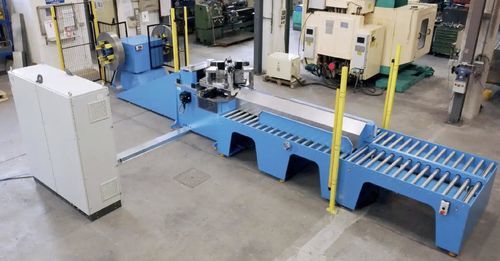

Die cut-to-length cutting line LT 250for steelstackingfor industrial applications
Add to favorites
Compare this product
Characteristics
- Technology
- die
- Material
- for steel
- Associated function
- stacking
- Applications
- for industrial applications
- Configuration
- compact
- Other characteristics
- coil-fed, cut-to-length, for metal strips, electrically-powered, with roller feeder
- Cutting speed
Max.: 3.833 m/s
(12.575 ft/s)Min.: 0 m/s
(0 ft/s)- Repeatability
0.1 mm
(0.0039 in)- Maximum width
250 mm
(10 in)- Minimum width
Max.: 40 mm
(2 in)Min.: 0 mm
(0 in)
Description
Description
Compact step-lap cutting line for oriented and non-oriented electrical steel, designed to cut transformer magnetic cores. Suitable for packet processing with 90° cuts. Compact footprint and engineered for industrial transformer production environments.
Product details
Category: Cutting lines for transformer cores
Features
Advantages
Technical specifications
Customization
The machine can be customized mechanically (dimensions, decoiler configuration) and electronically. Drilling and punching units can be adapted to customer specifications; drilling/punching options available on request.
Compact step-lap cutting line for oriented and non-oriented electrical steel, designed to cut transformer magnetic cores. Suitable for packet processing with 90° cuts. Compact footprint and engineered for industrial transformer production environments.
Product details
Category: Cutting lines for transformer cores
Features
- Strip width: min 40 mm, max 250 mm
- Sheet thickness: 0.23 mm - 0.35 mm
- Feed speed: 0 - 230 m/min
- Minimum punching heads: 2
- Punching diameter range: Ø8 mm - Ø23 mm
- Cutting tolerance: ±0.1 mm
- Maximum noise level: 78 dB
- Decoiler configurations: 1, 2 or 4 decoilers
- Packet processing system
Advantages
- Low noise level
- High processing speed
- Easy to operate
- Reduced maintenance times
Technical specifications
- Model: LT 250
- Strip width: 40 mm - 250 mm
- Sheet thickness: 0.23 mm - 0.35 mm
- Feed speed: 0 - 230 m/min
- Minimum punching heads: 2 (customizable units)
- Punch diameter: Ø8 mm - Ø23 mm
- Cutting tolerance: ±0.1 mm
- Maximum noise: 78 dB
- Decoiler configuration: 1, 2 or 4 decoilers
- Motorized roller for palletizing cut sheets
- Punch and shear drive: fully electric (brushless motors)
- No hydraulic circuits
- Packet processing system for stacked cutting
Customization
The machine can be customized mechanically (dimensions, decoiler configuration) and electronically. Drilling and punching units can be adapted to customer specifications; drilling/punching options available on request.
